Original Launch X431 V(X431 Pro) Wifi/Bluetooth Tablet Free Update Online for Two Years

Launch X431 V WIFI/Bluetooth Tablet Full System Diagnostic Tool

Top 9 Reasons to Get Launch X431 V

1. Supported Languages: English, German,Japanese, Russian,French,Spanish,Portuguese,Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Romania, Serbian,Finnish, Swedish, Czech, Simplified Chinese, traditional Chinese
2. Wi-Fi: Supported
3. Bluetooth: Supported
4. Dealer Code: 86A or 86K
5. Easy to Update: Support Online One-Click Update, No Need to Download Software to CF Card.
6. There is User Manual in the Multiplexer, you can check it when you use the device. it is in "cnLaunch" file.
7. Built-in battery 3000mha, Endurance 4 hours
8. Oversea full configuration contains total 59 softwares,See attached configuration Software List
9. No Software download IP limitation: Oversea download and update available

Notice:

1. When you receive the device, contact our customer sevice and advise the Serial nuMBer of your device, also the language and country you want to open authorization,after authorization finished, then you can log on Launch DBSCar Website to register CC account and download software you want
2. two Years free update, after 2 years update cost is 650USD/per year, 130USD/time

Descriptions of Launch X431 V

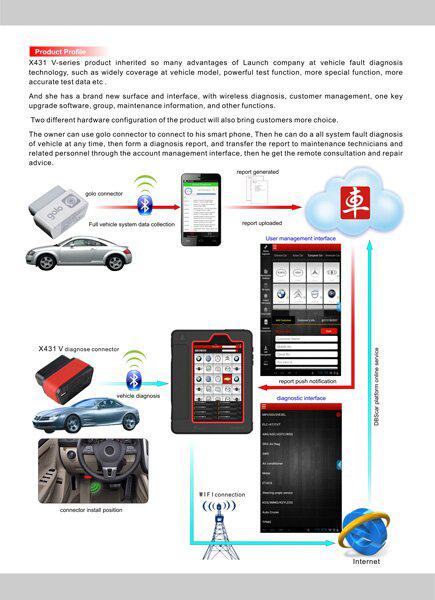

Launch X431 V (X431 Pro) with Bluetooth/WIFI based on Android system, is a new car malfunction diagnostic device developed by Launch Tech for internet application. X-431 V completely substitutes X431 IV and X431 Diagun III. It passes on Launch advantages in car fault diagnostic technology, such as vast car model coverage, powerful test function, special function and accurate tast data, etc.,  X-431 V achieves the full car model and full system fault Diagnosis through the bluetoooth communication between DBSCar connector and intelligent mobile terminal. X-431 V taking the advantage of mobile internet, can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circle,etc.,thus lead to wide car diagnostic community.

It is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application.

Features of Launch X431 V

• Panel PC: High configuration of hardware , fast running speed
• Capacitor Screen: Multi-touch capacitor screen, more smooth operation
• WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth
• Portable: Reasonable PDA design, small size for easy carry
• Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier
• Wifi communication: Support WIFI network
• Android System: Users can install and Android software
• Numerous Additional Functions: Photo, video, multimedia, other software application,etc.

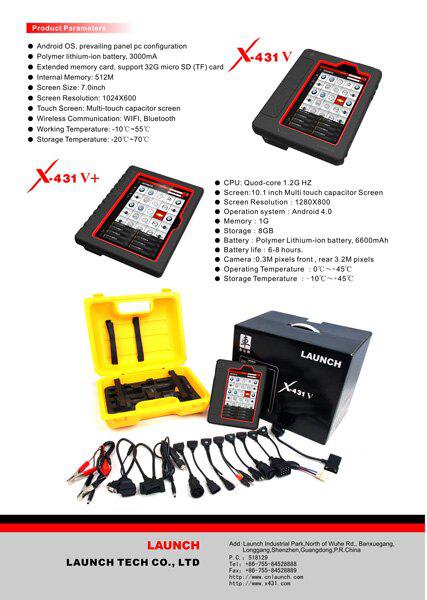

Pannel PC Parameters

• Operating System: Android
• CPU: Dual core 1GHz
• Battery: 3000mh, rechargeable polymer lithium battery
• Standby time: it is subject to the using environment. Generally it can keep working for 4 hours.
• Extension memory card: 32G Micro SD(TF) card supported
• Memory: 512MB
• Storage capacity: 2GB
• LCD: 7.0 inch
• LCD resolution: 1024X600
• Touch screen: 5 points capacitive touch screen
• Cameras: 2 mega rear and 0.3 mega front
• Working temperature: -10°C ~ 55°C (14°F to 131°F)
• Storage temperature: -20°C ~ 70°C (-4°F to 158°F)

DBSCar Connector Parameters:

• Working Voltage: 9 ~15V
• Average working current: about 35mA
• Standby current: about 25mA
• Working temperature: -20 to 55°C (-4°F to 131°F)
• Storage temperature: -30 to 70°C (-22°F to 158°F)
• Storage humidity: <80%
• Working humidity: <60%
• Net weight: about 26g
• Bluetooth Distance: 10M (without obstacle)

What is Difference Between X431 V and X431 IV?

1. Operation System:

   • X431 IV: LINUX
   • X431 V: Android

2. Screen

   • X431 IV: LCD Touch with backlight, 240*320
   • X431 V: 7 inch Capacitive Touch

3. Processor:

   • X431 IV: 72MHz 32-bit ARM7
   • X431 V: 1GHz Dual Core

4. Memory:

   • X431 IV: 16M
   • X431 V: 512M

5. Storage:

   • X431 IV: 1GB CF Card
   • X431 V: 2GB, extendible to 32G

6. Battery

   • X431 IV: No
   • X431 V: 3000mAh, Endurance: 4h

7. Printer:

   • X431 IV: Thermal Printer
   • X431 V: NO

8. Diagnostic Method:

   • X431 IV: Test Cable
   • X431 V: Bluetooth/WIFI

   Diagnosis

   • X431 IV: Wired diagnosis, independently diagnose full system and analysis & display through smart terminal.
   • X431 V: Bluetooth diagnosis, independently diagnose full system and analysis & display through smart terminal

9. Diesel Vehicle

   • X431 IV: Yes, 12V
   • X431 V: NO

10. Upgrade method

    • X431 IV: Download to CF Card
    • X431 V: Online one-click upgrade

11. Multi Group Display

    • X431 IV: 2
    • X431 V: 4,6,12

12. Camera:

    • X431 IV: NO
    • X431 V: Front: 0.2 megapixel, Rear: 2.0 megapixel

13. Startup Time:

    • X431 IV: 35s
    • X431 V: 25s

14. Picture/Audio/Video/Instant Chat

    • X431 IV: NO
    • X431 V: YES

15. Design Feature:

    • X431 IV: Encapsulate design at side and bottom, anti-knock, powerful function, economical cost
    • X431 V: Tablet, Multi-touch, Customer Management

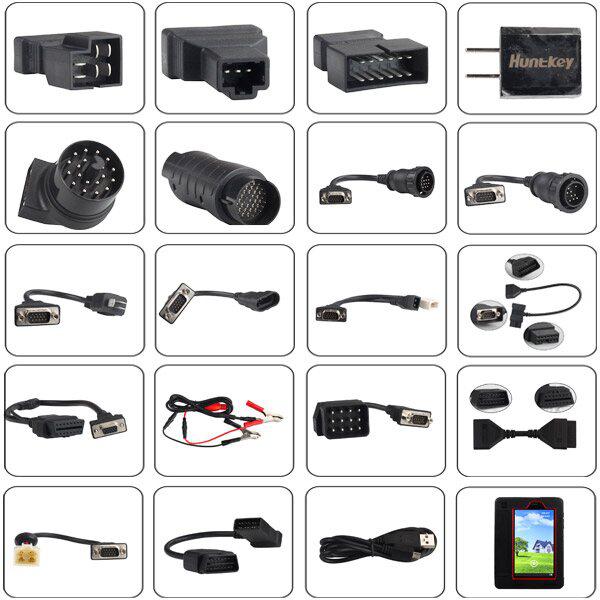

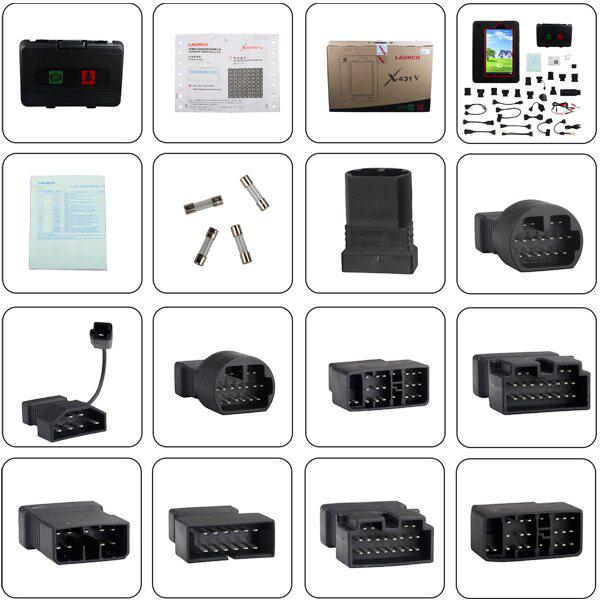

Packing List

• X-431 V Pad Computer
• Password Envelope
• X-431 V Protection Sleeve
• DBScar Diagnostic Connector
• OBD II Extension Cable
• Cigarette Lighter Cable
• Power Adaptor
• USB Data Cable
• Non-16Pin Connector
