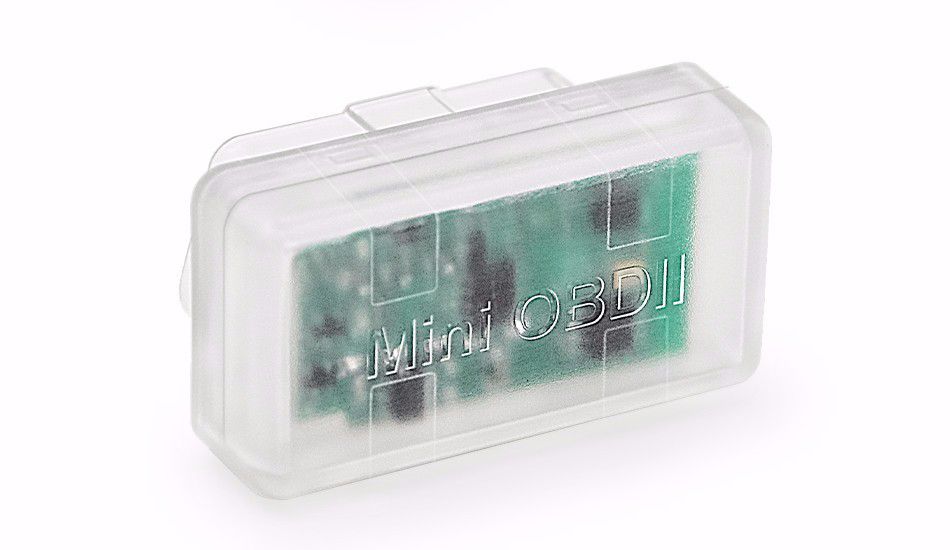

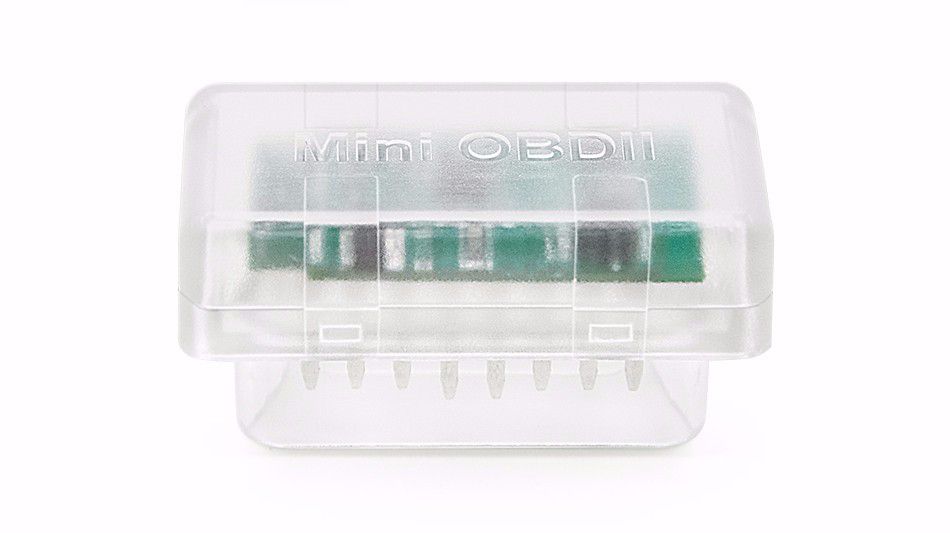

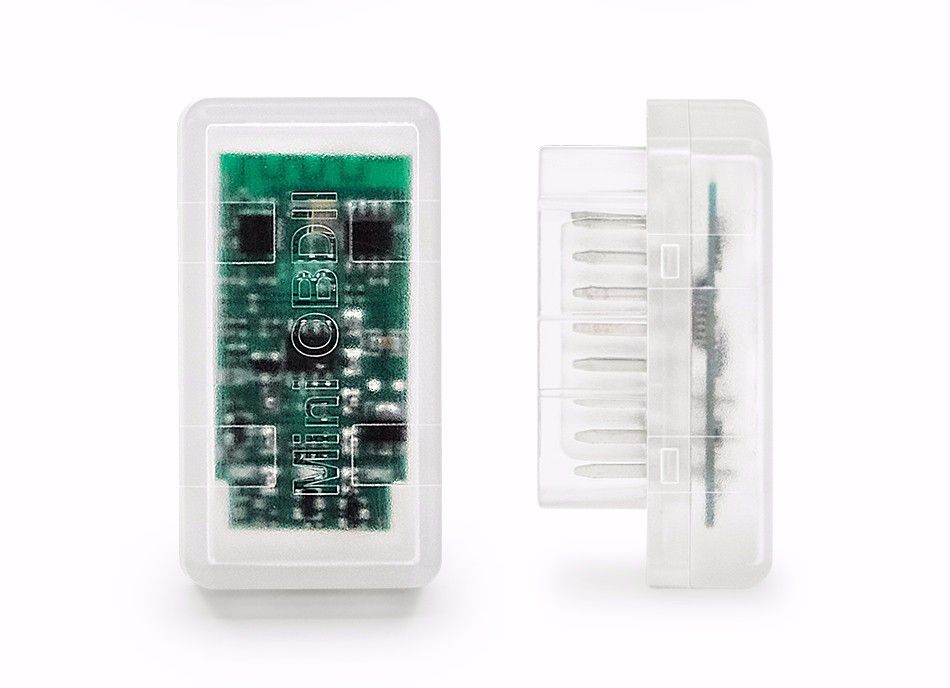

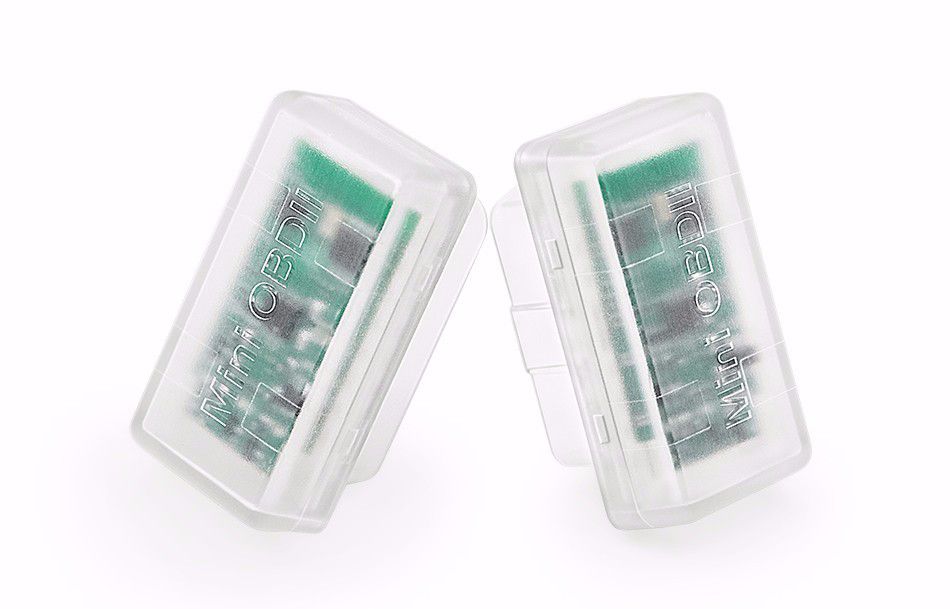

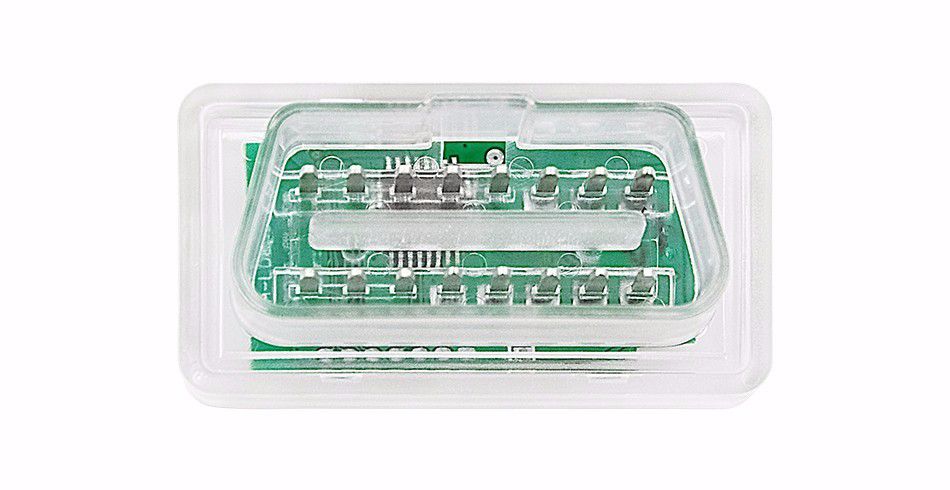

MINI OBD2 V4.0 Newest ELM327 OBDII OBD2 EOBD Code Scanner for iOS/ Android/ Windows Car Diagnostic Interface
- Vehicle examination , fault diagnosis
- Fatigue driving alarm, overspeed alarm,
- Wate temperature alarm, intelligent driving
IMPORTANT: The world's smallest Mini OBDII V4.0L is designed with an advanced chip, with independent appearance of patents, utility model patents and software copyrights. Also, it's verified by the CE, FCC, RoHS certification.
MINI OBD2 Functions List:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
* Engine RPM
* Calculated Load Value
* Coolant Temperature
* Fuel System Status
* Vehicle Speed
* Short Term Fuel Trim
* Long Term Fuel Trim
* Intake Manifold Pressure
* Timing Advance
* Intake Air Temperature
* Air Flow Rate
* Absolute Throttle Position
* Oxygen sensor voltages/associated short term fuel trims
* Fuel System status
* Fuel Pressure
MINI OBD2 Compatible App & O.S. requirement:
- IOS: Mini OBDII
- Window: ScanMaster-ELM, ScanTool.net, PCMSCAN and so on;
- Android: Mini OBDII, Torque, DashCommand, OBD Car Doctor and so on;
- Symbian: OBDScope
Compatible with IOS, Windows XP, Windows 7/8, Android, Symbian
MINI OBD2 supported protocols :
- ISO 9141 (5 bauds initalization)
- ISO14230-4 (5 baud init)
- ISO14230-4 (rapid init)
- ISO15765-4 (11bit ID, 500 Baud)
- ISO15765-4 (Bid ID 29bit, 500 Baud)
- ISO15765-4 (11bit ID, 250 Baud)
- ISO15765-4 (29 bit Bid ID, 250 Baud)
MINI OBD2 Specification:
- Communication method: Bluetooth 2.0 / 4.0
- Software platform: support Android / IOS / Windows
- Operating voltage: 9 V ~ 16 V
- Operating current: 25mA
- Operating temperature: -40C ~ 85C
- Operating humidity: <60%
- Dimensions: 48mm * 25mm * 25mm
- 1pc x Mini OBDII V4.0
