XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function
  • XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function
  • XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function
  • XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function
XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function
XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function
XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function

XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function

Xtool EZ500 HD is a high-end and new style auto diagnostic device developed by XTOOL based on Android system. Its open source Android operating system provides fast boot-up and multitasking. EZ500 HD provides extensive vehicle coverage for most US, Asian and European makes, which makes it the best solution for workshops.
Item No. COBD24786
5 stars, 9 reviews.
Out of Stock
Price:
US$2,100.00/ piece
Discount Price:
US$1,799.00/ piece 14%
Version:
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question

XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function

XTOOL EZ500 HD Heavy Duty Full System Diagnosis XTOOL EZ500 HD Heavy Duty Full System Diagnosis XTOOL EZ500 HD Heavy Duty Full System Diagnosis XTOOL EZ500 HD Heavy Duty Full System Diagnosis XTOOL EZ500 HD Heavy Duty Full System Diagnosis XTOOL EZ500 HD Heavy Duty Full System Diagnosis

Top Reasons to Buy XTOOL EZ500 HD:

  1. Easy registration with EZ500 HD connected to WIFI
  2. One-click software update via WIFI
  3. Remote access
  4. Diagnosis reports in PDF file
  5. Record and playback live data
  6. 8.0 inch multi-touch screen
  7. On-board battery
  8. Extensive vehicle coverage for most US, Asian and European vehicle makes
Layout of EZ500 HD

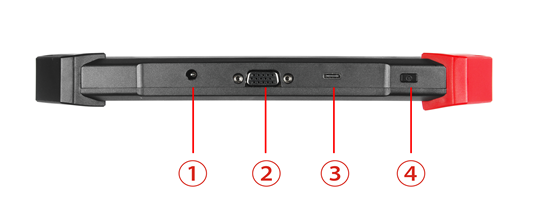

Top View of EZ500 HD Tablet

XTOOL EZ500 HD Heavy Duty Diagnosis Display 1

① DC Charging Interface: Battery charge, DC 12V.
② DB15 Interface: Directly connect with truck to establish wire connection.
③ USB Type C Interface: Compatible with HDMI TV; Transfer audio and video simultaneously
④ Power Button

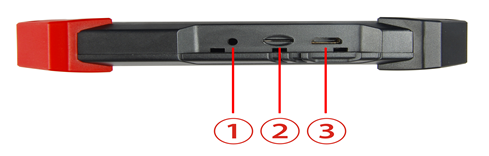

Side View of EZ500 HD Tablet

XTOOL EZ500 HD Heavy Duty Diagnosis Display 2

① Headphone Jack
② TF Card Slot
③ Mini HDMI Port

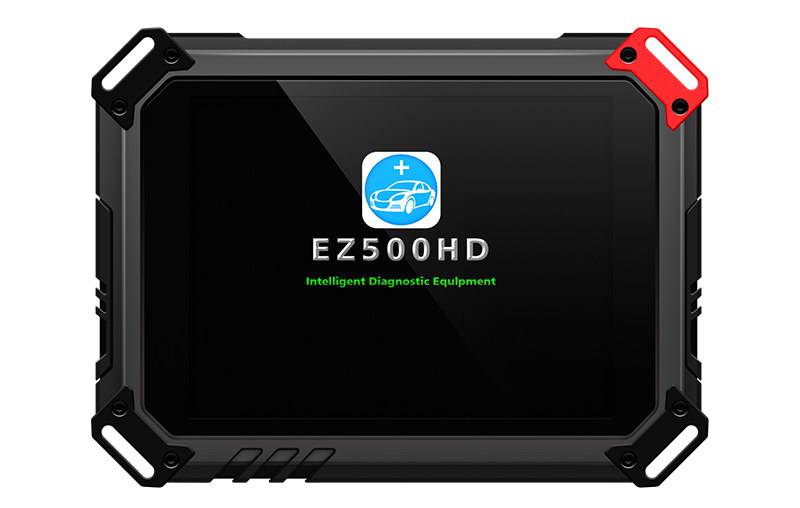

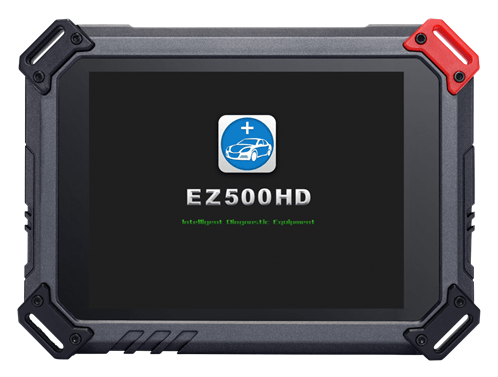

Front View of EZ500 HD Tablet

XTOOL EZ500 HD Heavy Duty Diagnosis Display 3

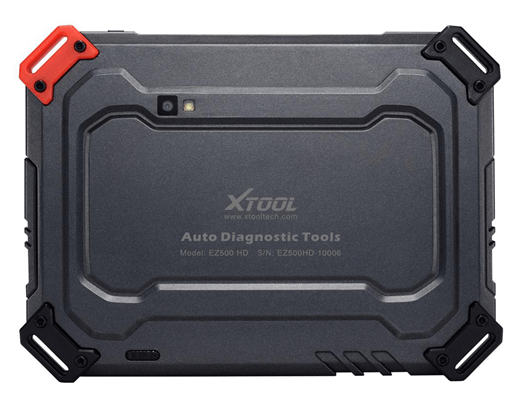

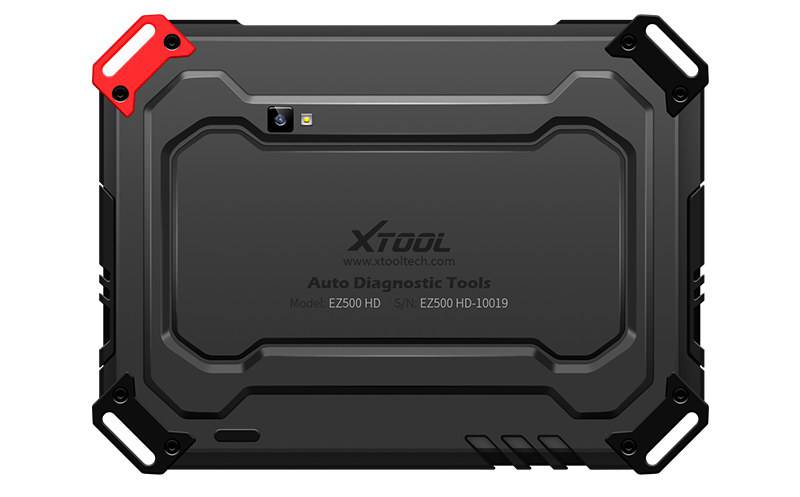

Back View of EZ500 HD Tablet

XTOOL EZ500 HD Heavy Duty Diagnosis Display 4

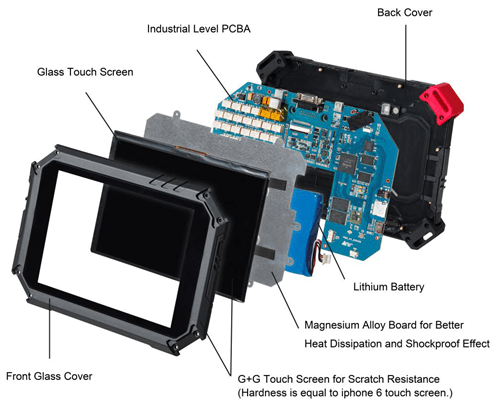

EZ500 HD Exploded Diagram

XTOOL EZ500 HD Heavy Duty Diagnosis Display 5

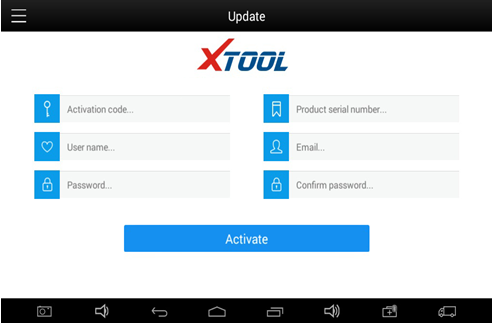

Easy registration with EZ500 HD connected to WIFI. Don’t bother to use PC for registration
.
XTOOL EZ500 HD Heavy Duty Diagnosis Display 6

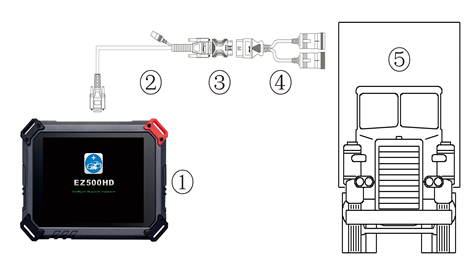

Connect to the vehicle directly with cable

XTOOL EZ500 HD Heavy Duty Diagnosis Display 7

① EZ500 HD Mainframe
② Main Test Cable
OBD2 16pin Connector
OBD 6+9 Pin Connector or other connectors
⑤ Vehicle

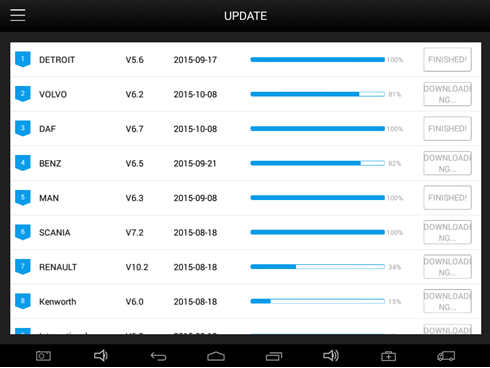

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

XTOOL EZ500 HD Heavy Duty Diagnosis Display 8

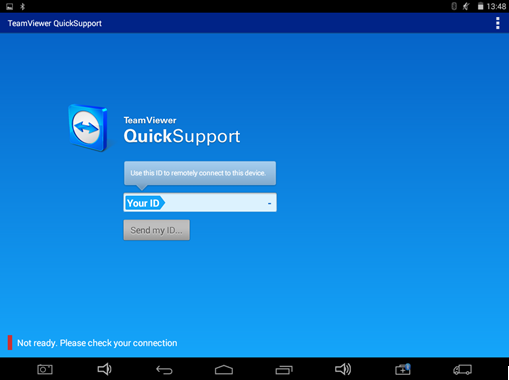

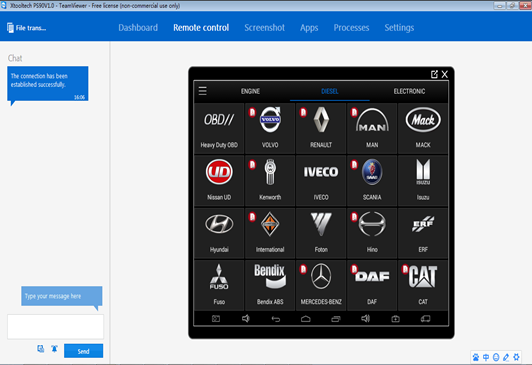

Remote access, which is perfect for training, demonstration and even remote Diagnosis.

XTOOL EZ500 HD Heavy Duty Diagnosis Display 9

XTOOL EZ500 HD Heavy Duty Diagnosis Display 10

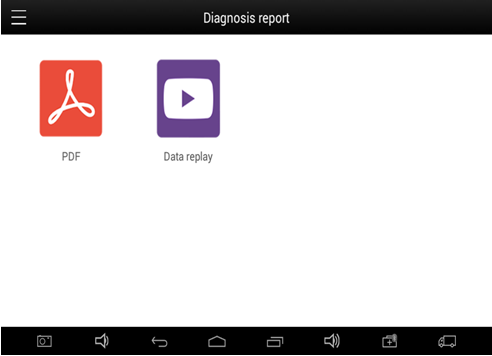

Diagnosis reports in PDF file. Print out the diagnosis report and show it to vehicle owners when they come and fetch their vehicles. They will be really happy knowing what kinds of problems have been fixed for their vehicles.

XTOOL EZ500 HD Heavy Duty Diagnosis Display 11
XTOOL EZ500 HD Heavy Duty Diagnosis Display 12

Extensive vehicle coverage for most US, Asian and European vehicle makes

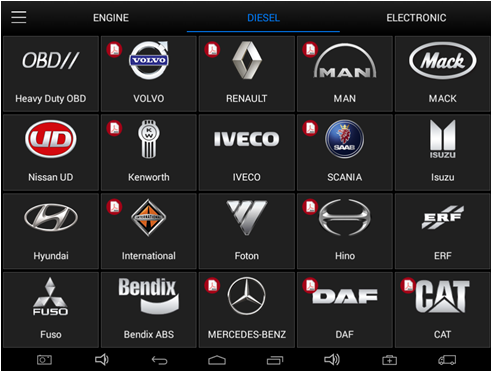

DIESEL:
VOLVO, Allison, Bendix, Mercedes-Benz, CAT, DAF, ERF, Foton, Fuso, Hino, Hyundai, International, Isuzu, IVECO, Kenworth, MACK, MAN, RENAULT, SCANIA, Nissan UD, WABCO, etc

XTOOL EZ500 HD Heavy Duty Diagnosis Display 13

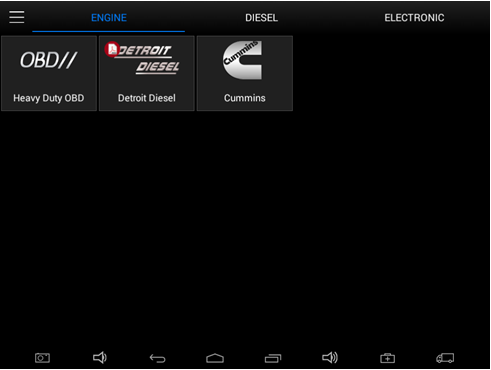

It can also diagnose trucks via ENGINE: Cummins, Detroit DIESEL, MaxxForce, etc

XTOOL EZ500 HD Heavy Duty Diagnosis Display 14

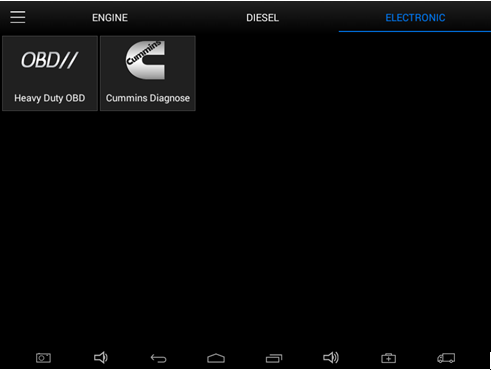

It can also diagnose trucks via ELECTRONIC: Cummins and more…

XTOOL EZ500 HD Heavy Duty Diagnosis Display 15

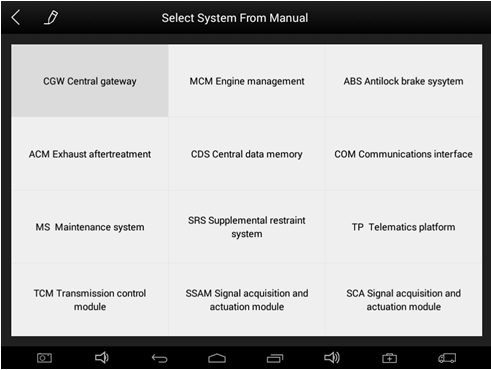

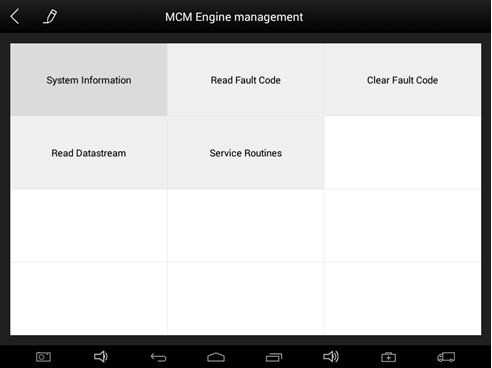

Full System Diagnosis: Engine, ABS, ACM, CDS, COM, SRS, etc.

XTOOL EZ500 HD Heavy Duty Diagnosis Display 16

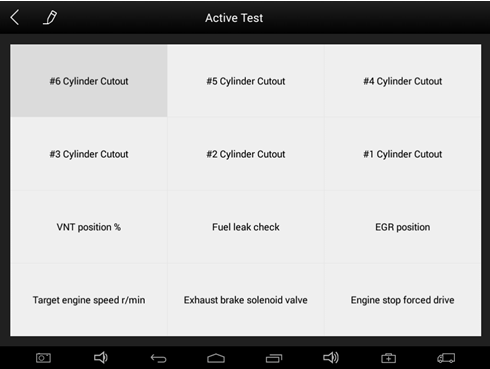

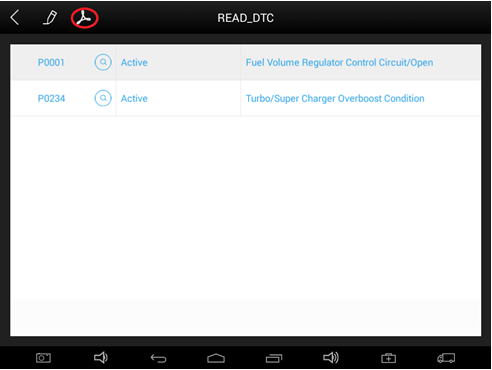

Basic Function: read fault codes, clear fault codes, live data, actuation, active test

XTOOL EZ500 HD Heavy Duty Diagnosis Display 17
XTOOL EZ500 HD Heavy Duty Diagnosis Display 18

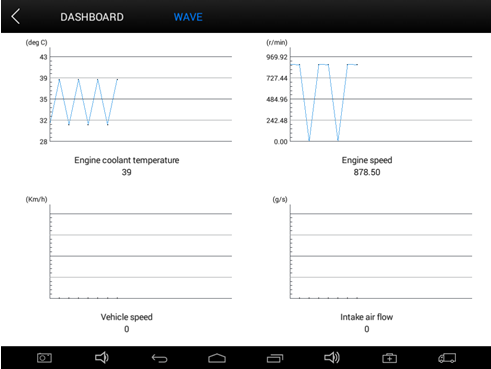

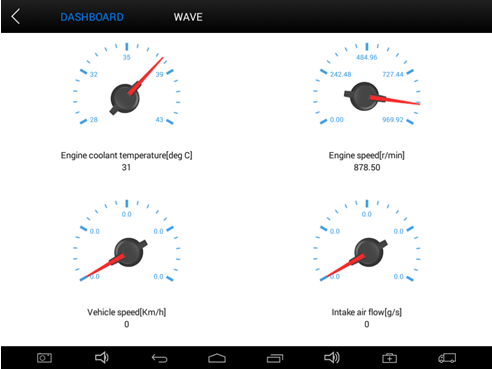

Accurate Live Data in Both Wave and Dashboard Form

XTOOL EZ500 HD Heavy Duty Diagnosis Display 19
XTOOL EZ500 HD Heavy Duty Diagnosis Display 20

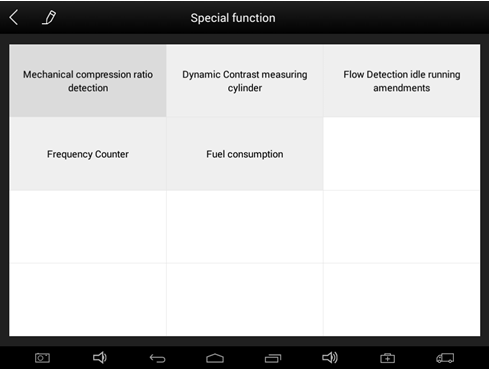

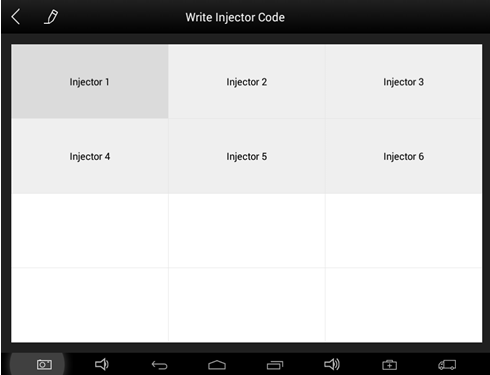

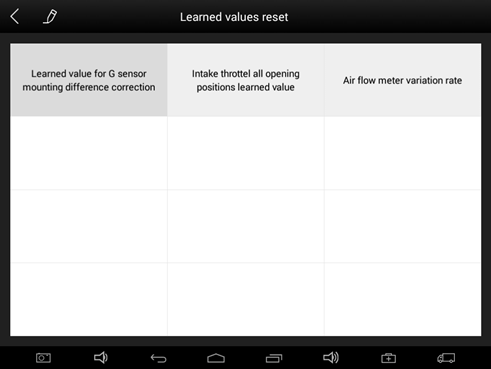

Special Function:
Service reset, DPF & ADBlue reset, injector coding, cylinder cutoff, fuel pump calibration, ERG learning, learned value reset, maximum vehicle speed setting, limited hand throttle, etc.
XTOOL EZ500 HD Heavy Duty Diagnosis Display 21

XTOOL EZ500 HD Heavy Duty Diagnosis Display 22

XTOOL EZ500 HD Heavy Duty Diagnosis Display 23

Specifications:

Operating System: Android 4.4.4
Memory: 1GB RAM,16GB Flash
CPU: Quad Core, 1.6GHz
Display: 8.0 Inch IPS 10-Point Multi-touch Screen with 1024×600P Resolution
Sensors: Gravity Sensor, Light Sensor
Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, DC5.5, TF Card Port
Battery: 4000mAh, 7.4V
Wi-Fi: WIFI 2.4Ghz
Power Voltage: 12V
Power Consumption: 29.6W
Operating Temperature: -20 to 50℃(-4 to 126℉)
Humidity: <90%
Dimension: (L*W*H): 240*177*30mm

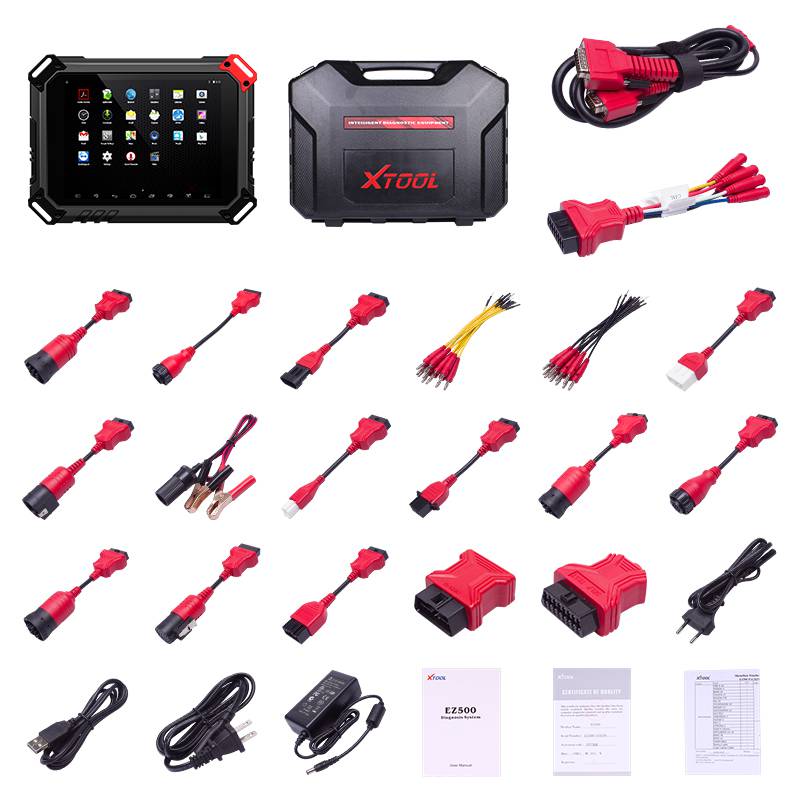

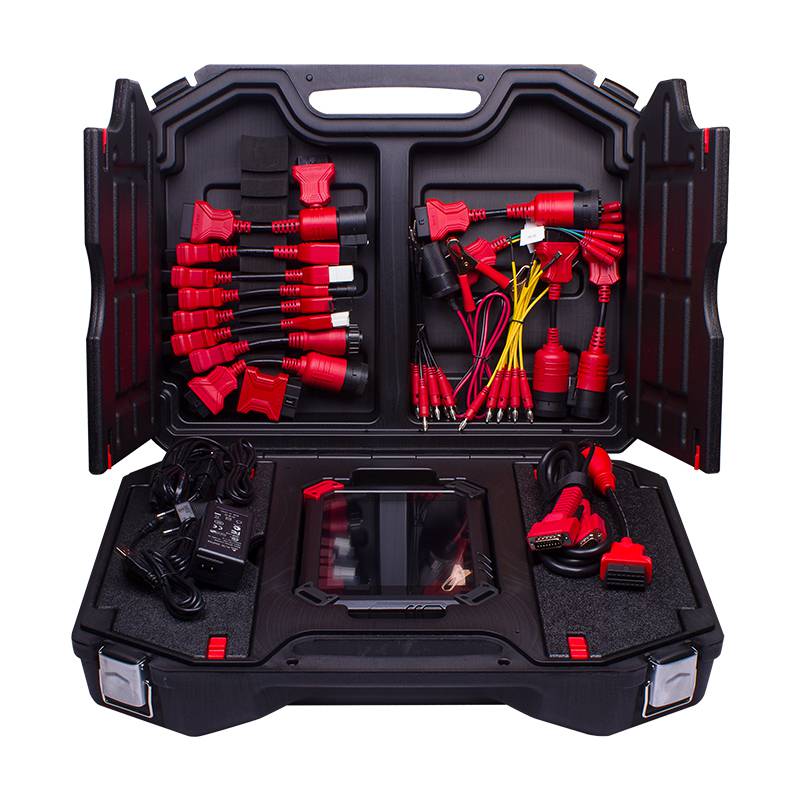

Package including:

  • 1pc x EZ500 HD Tablet
  • 1pc x Charger for Tablet
  • 1pc x Charger Cable US
  • 1pc x Charger Cable EU
  • 1pc x OBD II-16
  • 1pc x SELFTEST
  • 1pc x OBD-R16
  • 1pc x CAT-9
  • 1pc x Isuzu-3
  • 1pc x Isuzu-20
  • 1pc x DENSO-12
  • 1pc x Cummins-6
  • 1pc x CUMMINS-9
  • 1pc x IVECO-30
  • 1pc x VOLVO-8
  • 1pc x Benz-14
  • 1pc x Universal Cable
  • 1pc x Battery Cable
  • 1pc x Cigar Lighter Cable
  • 1pc x DB15 Main Cable
  • 1pc x USB TYPE-C Cable
  • 1pc x Tool Case
  • 1pc x Carton
  • 1pc x Certificate of Quality
  • 1pc x Packing List
  • 1pc x User MANual
