Xhorse FCA-12+8 Adapter for Jeep Dodge Chrysler Work with VVDI Key Tool Plus

Xhorse FCA-12+8 Adapter for Jeep Dodge Chrysler Work with VVDI Key Tool Plus

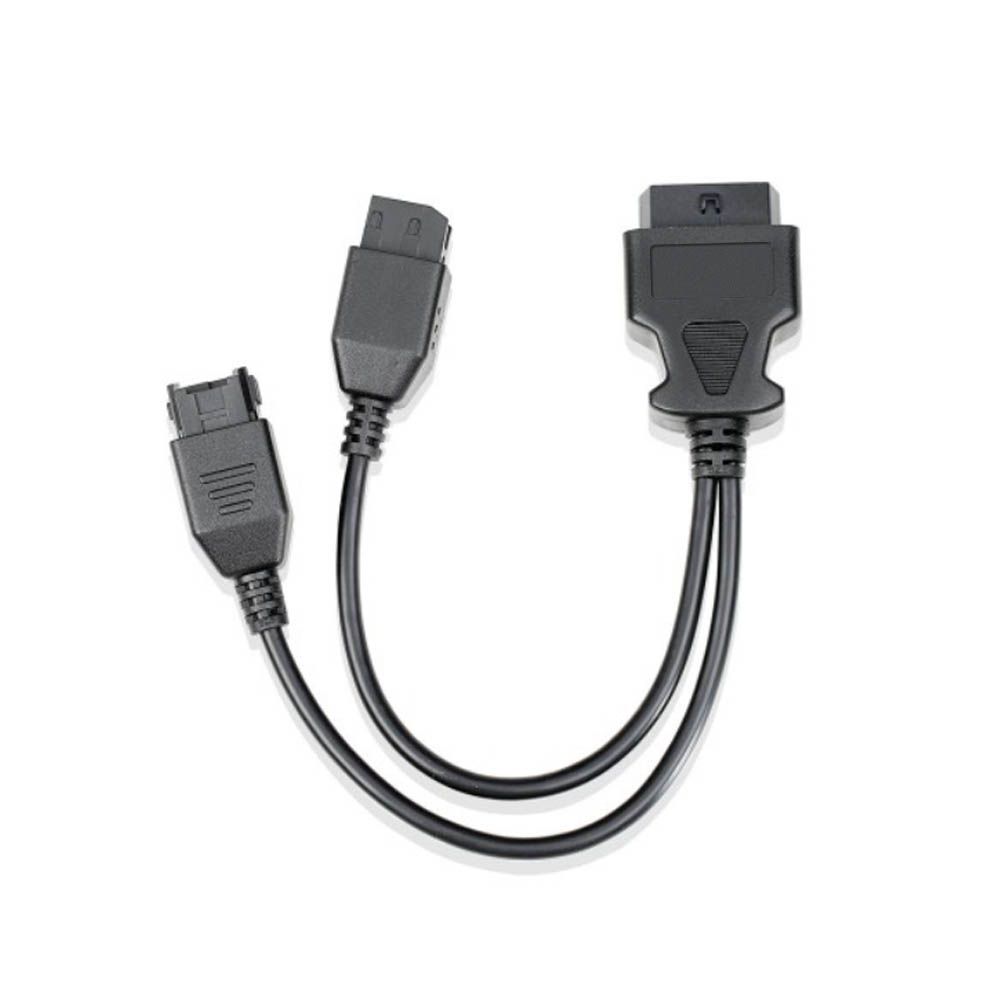

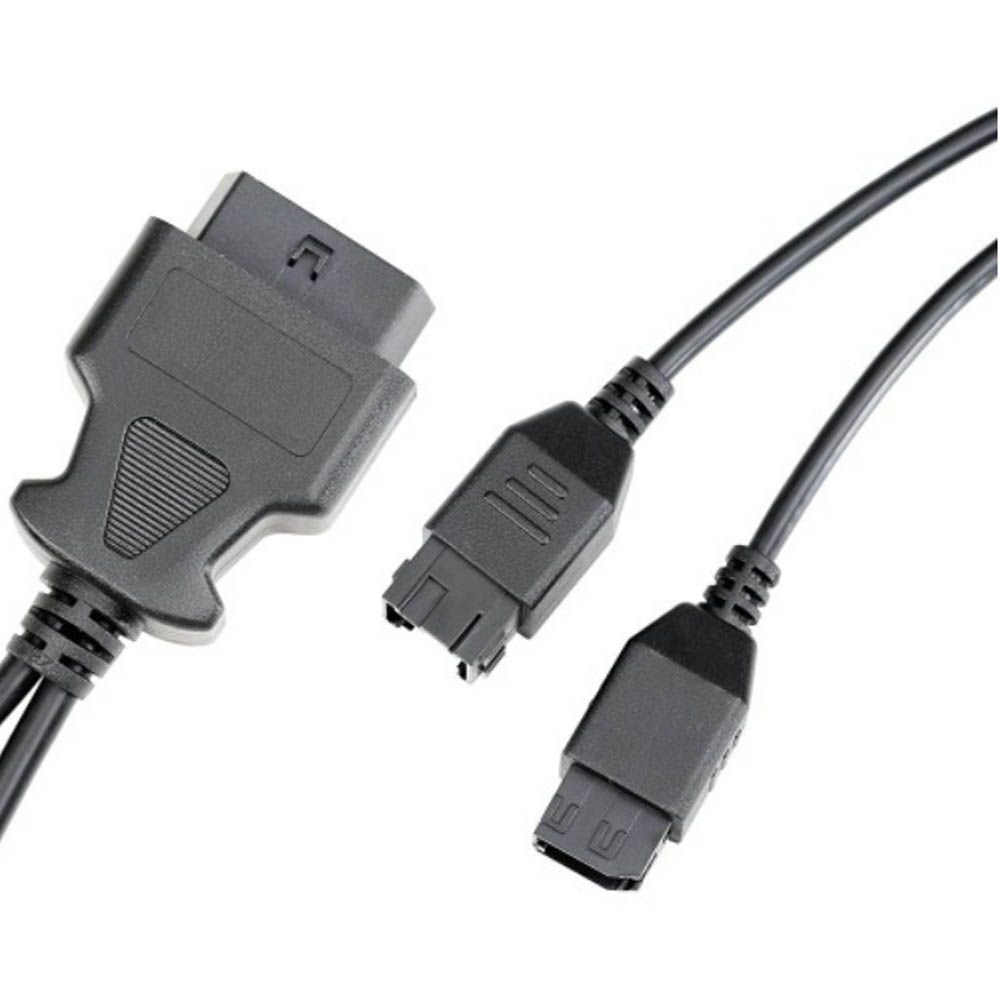

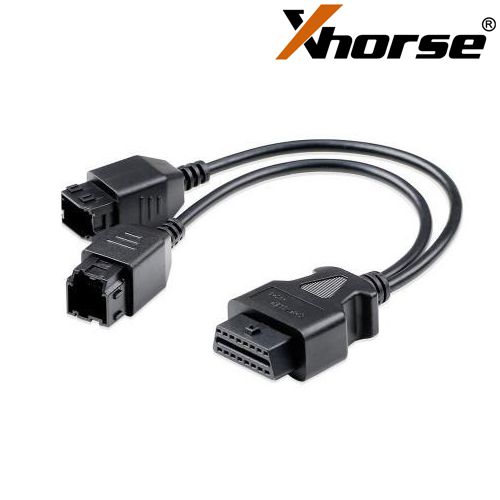

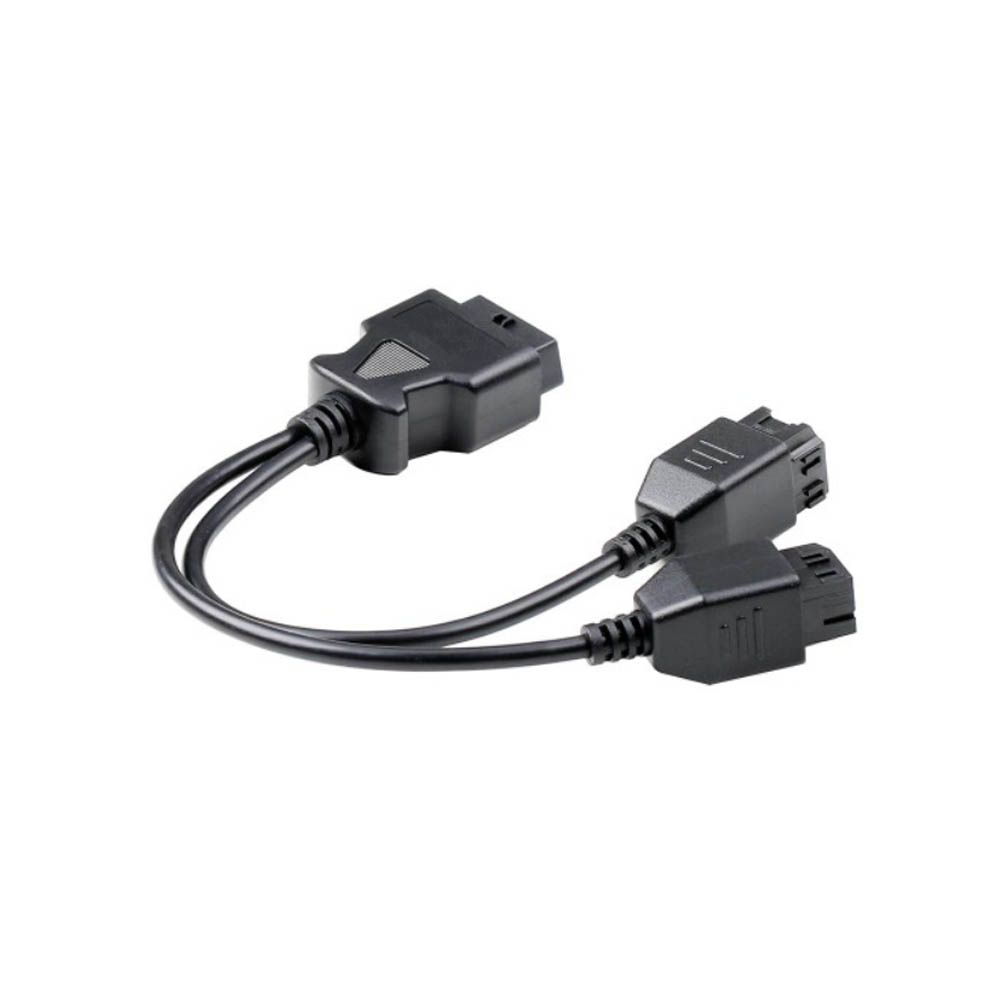

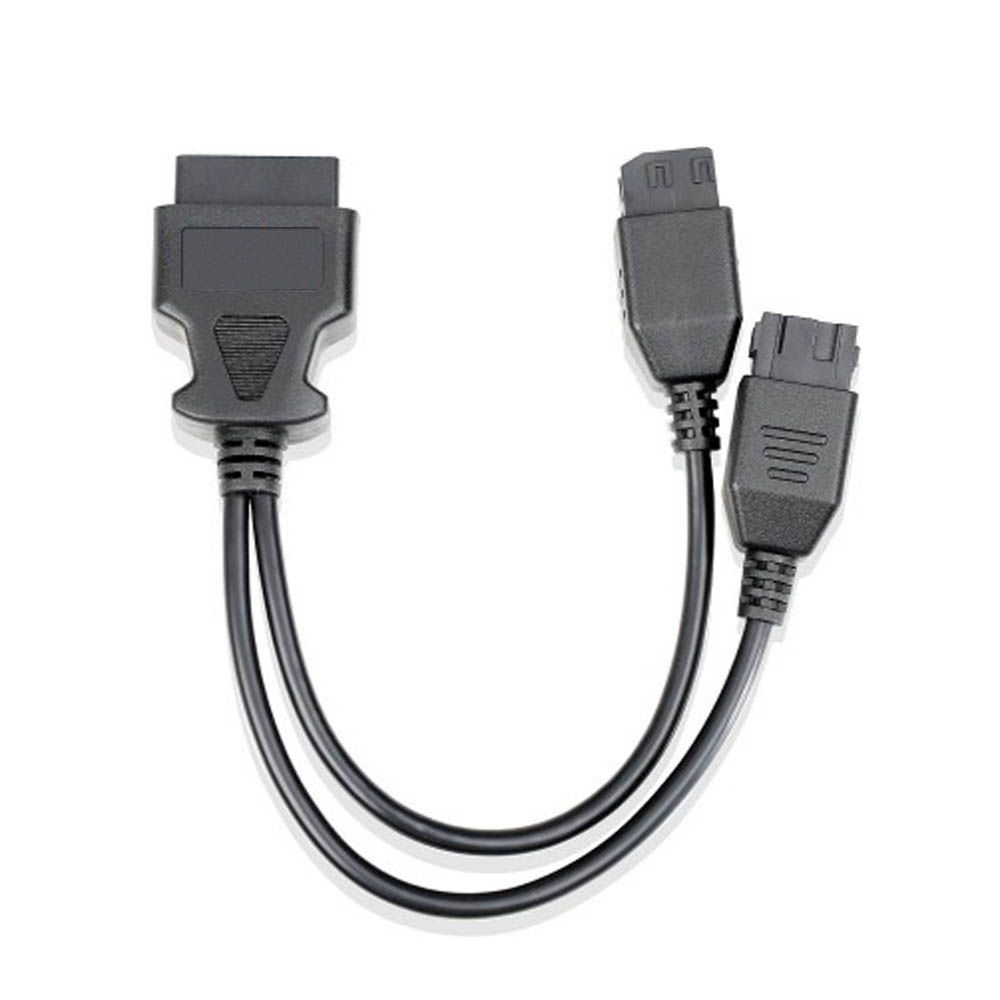

Xhorse FCA 12+8 universal adapter can be used with scanners to diagnose faults for Chrysler Jeep Renegade Wrangler 300C vehicles after the 2018 model year.
With Xhorse FCA 12+8 universal adapter, the aftermarket scan tool has all the capabilities on SGW equipped vehicles as if these vehicles were not equipped with SGW.

Functions:

1. Work Together with Xhorse Key Tool Plus Pad
2. Used in Key Programming and Cluster Calibration via OBD2
3. Used with Other Diagnostic Devices to Read and Clear Fault Code
4. To Correct Mileage or Reset Oil via OBD2 for 2018 and up FIAT/ Chrysler/ ALFA ROMEO Vehicles.
5. Break the Restrictions Caused by SGW.

Support List:

For Jeep
JEEP CHEROKEE 2018-
JEEP GRAND CHEROKEE 2018-2020
GLADIATOR 2020-
JEEP COMPASS 2018-
JEEP WRANGLER 2018-2020
JEEP RENEGADE 2019-
JEEP RENEGADE 2020-
COMMANDER 2018-
GUIDE 2017-

For Dodge
Dodge CHALLENGWER 2018-2021
DODGE CHARGER 2018-2021
DODGE DURANGO 2018-2020
DODGE JOURNEY 2018-
RAM 2018-2021
COOLWAY 2018-2019

For Chrysler
CHRYSLER 300 2018-2021
CHRYSLER 300C 2018-2021
CHRYSLER 300 PACIFICA 2018-2020
GRAND VOYAGER 2018-

For MASERATI
MASERATI AND GHIBLI 2018-

For FIAT
FIAT 2018-

How to Use Xhorse FCA 12+8 Universal Adapter:
You are supposed to see this message when scanning a for Chrysler with the Security Gateway Module(SGW): Device is unable to communicate with the control unit. No worries, please follow the steps below to quickly solve this problem.
Step One: Locate and unplug the 12pin and 8PIN connectors of the SGW module.

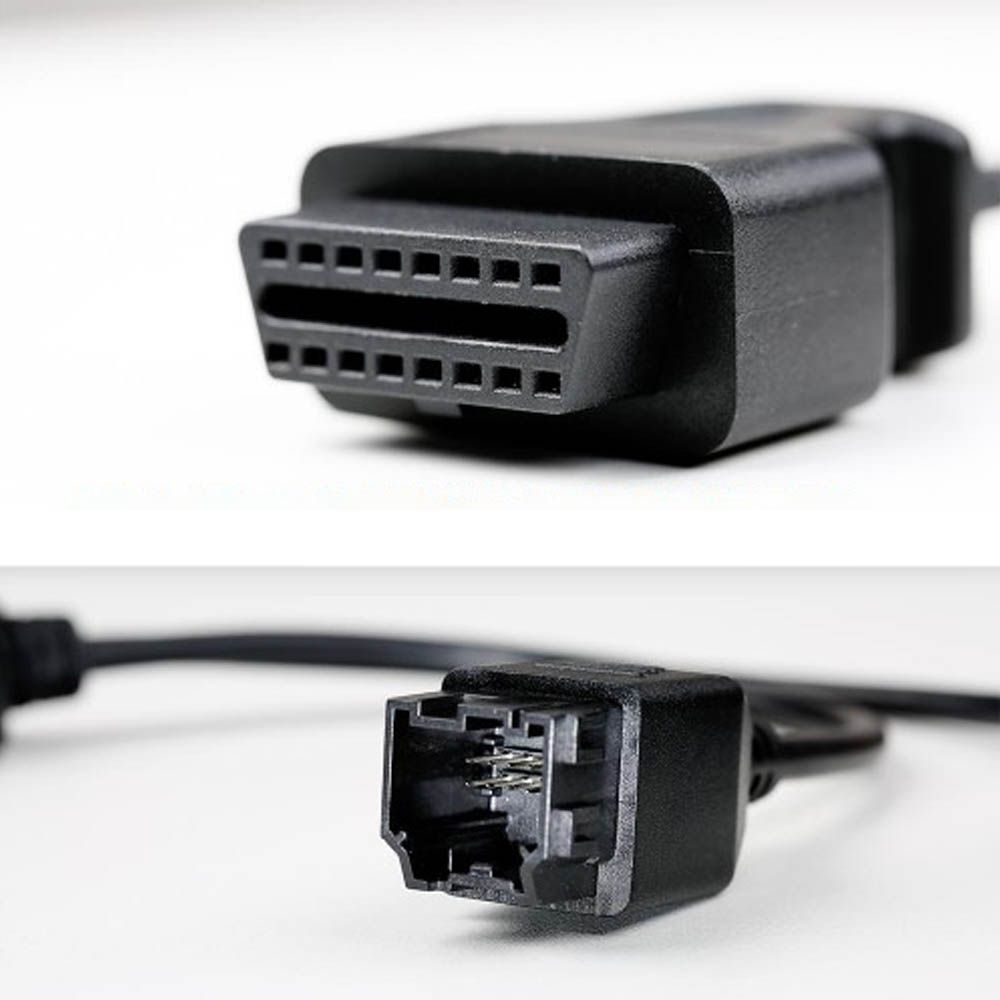

Step Two: Connect the FCA 12+8 directly to the 12pin and 8pin connectors(two connectors that are connected to the SGW) on the car.
Then the normal communication function with the vehicle can be achieved.

Package List:

1pc x Xhorse FCA 12+8 Adapter
