Original Autel MaxiDAS® DS708 DS708 Scanner With Multi-language

Original Autel MaxiDAS DS708 Wireless Scanner

4. Powerful Function, Support 12V Petrol and Diesel
5. Complete Function Capability Including Live Data, ECU Programming, Sensor Initializations, Coding & Module Set Up Functionality
6. Wi-Fi Internet Capability: allows for wireless access throughout the workshop

Notice:
1. If you live in USA, We will ship from USA Warehosue by UPS, Which is NO TAX with fast delivery.
2. This DS708 is not Latin version

Autel Maxidas DS708 Feature and Function:

1.Extensive vehicle coverage for more than 30 domestic, Asian and European vehicle makes

2.Deep vehicle system coverage for ALL electronic systems

3.Complete function capability including live data.

4.Unparalleled OBDII functionalities supports ALL 5 OBDII protocols and ALL 9 test modes

5.Automatic Wi-Fi updates available in new software releases

6.Innovative dual-processor technology for quicker diagnostics and boot-up

7.The genuine Windows CE operating system allows for more stable performances, better compatibility and expandability

8.Internet explorer brings internet resource of your choice at your fingertips

9.WIFI internet capability allows for wireless access throughout the workshop

10.Extremely easy-to-us with touch-screen operation and intuitive operation

11.Unique shop tough ergonomic design features multi-layered rubber protection and strong housing

12.Intelligent memory of vehicles for easy and quick diagnosis of tested vehicles

13.Captures, saves and prints screenshots for convenient troubleshooting

14.Displays live data in text, graph and analog for easy data review and analysis

15.Records and playbacks live data to pinpoint troubles of sensors and components

16.Innovative graph merging for easy and quick detection of intermittent problems

17.Automatic WIFI Data Logging for quick and accurate technical support and troubleshooting

18.Built-in overvoltage protection keeps the instrument and vehicle from unwanted damages

29.Creative remote diagnosis for convenient demonstrationand training

20.Powered by Autel® Uni-SCANTM technology with no need for extra adaptors or "keys"

21.Prints out recorded data any time and anywhere with Wi-Fi printing capability

Autel Maxidas DS708 Connection Picture:



Autel Maxidas DS708 English Version Vehicle List:

1. European vehicle list:
AUDI, Benz, BMW, DACIA, EU FORD, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, Benz SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE.

2. USA vehicle vist:
GM, Chrysler, FORD

3. Asia vehicle list:
SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, Nissan, Mitsubishi, LEXUS, INFINITI, Hyundai, HOLDEN, HONDA, ACCURA, MAZDA.

Maxidas DS708 Software Display:

Autel Maxidas DS708 Software Update

Autel frequently releases software updates that you can download. TheUpdate feature makes it very easy to determine and get exactly what you
need.The Update allows you to update the scan tool software either through the scan tool or via a computer.

1. Autel DS708 Update Software through the Scan Tool
1.Ensure that the scan tool is connected to a power source and the power LED light is illuminated.
2.Press the ON/OFF button to turn on the scan tool and wait for the Home screen to appear.
3.Connect the scan tool to the Internet. (Please refer to the Section 5.2 Wi-Fi or the Section 5.3 Network.)
4.From the main screen, choose Update, and the scan tool will load on and display the “MaxiDAS ® DS708 Update V3.25.18: (user name)”
screen. Update checks for available updates.
5.If the system program in your scan tool is not the latest version, we suggest you to update it right now. When system program is installed,
scan tool will prompt you with a message, “Please restart the scan tool to finish updating.” Either you exit the program and restart scan tool
right now, or you could try it later.
6. In the Update window, select the items you want to install. Usually, youshould install all available updates.

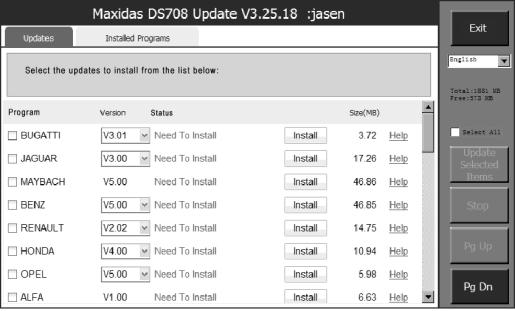

Update through scan tool – Main Screen
NOTE: If the scan tool fails to log on the updating process, you might be using an illegal or limited connection. Please consult your Internet
administrator and adjust Internet settings. To check the Internet status,you can try logging on a website on the scan tool.


2. Autel DS708 Update Software via a Computer
1. Ensure that the update application software has been properly installed to your PC. If not, please refer to Section 2.3 Install the PC Software.
2. Make sure that your computer is connected to the Internet.
3. Load the SD card of the scan tool to your PC.

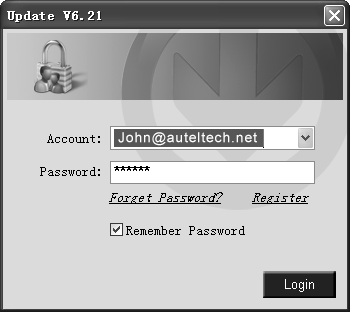

4. Run the update client software. Wait for the Log In window to pop up.

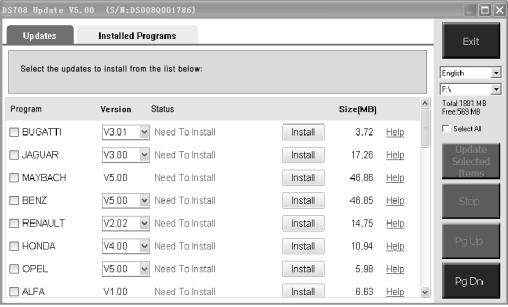

5. Enter the user name and password and wait for the Update window to display. If you forget your password unintentionally, you may always
click the [Forget Password?] to link to our website and find your password back.

6. Use the pull-down menu on the right to select an SD card if two or more SD cards have been connected to the PC.

7. The detailed updating procedure operates pls follow user manual.

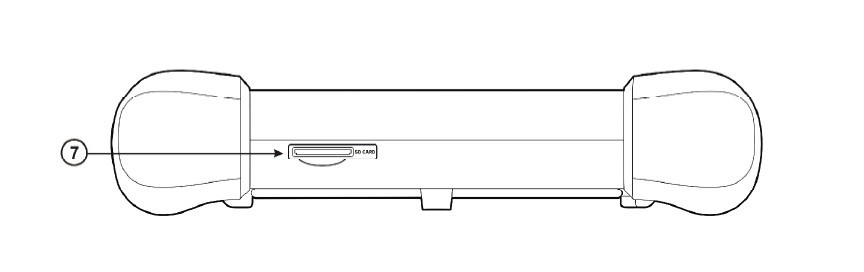

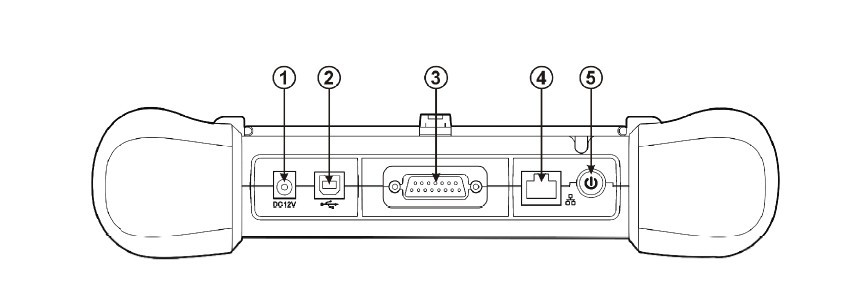

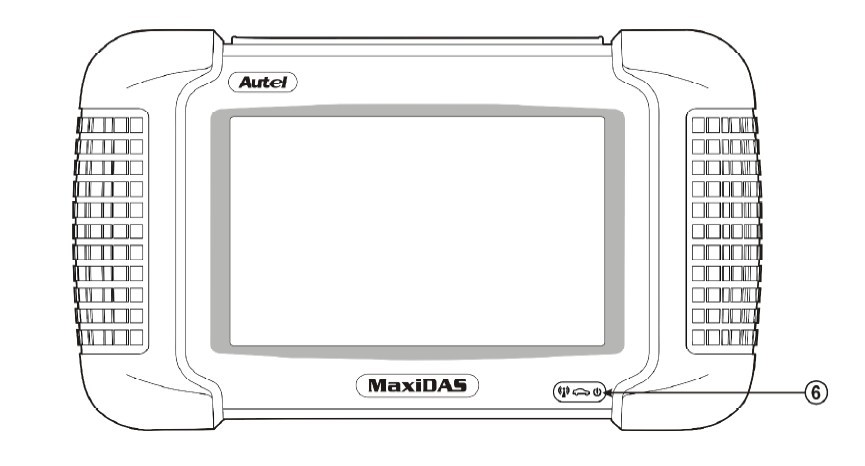

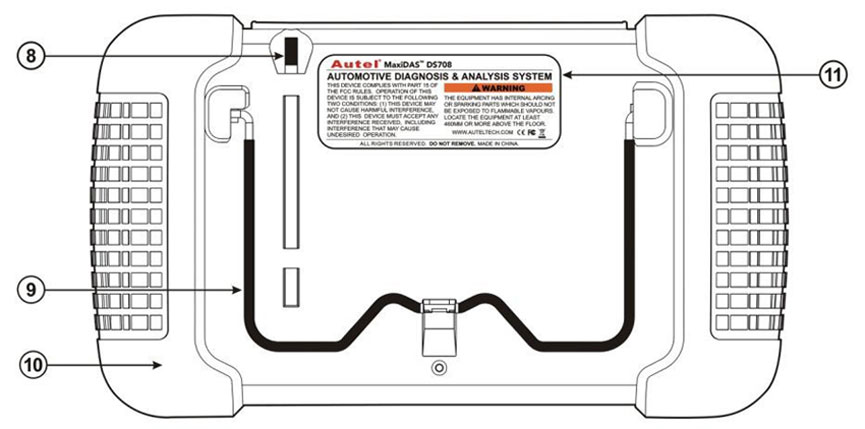

Autel Maxidas DS708 Component Descriptions

AUTEL DS708 Package List:

1. Main part

1pc x DS708 main unit
1pc x Stylus pen
1pc x 4GB SD memory card
1pc x Carrying case

2. Adaptor

1pc x OBDII 16PIN
1pc x HONDA 3pin
1pc x AUDIA 2x2
1pc x Benz 38pin
1pc x BMW 20pin
1pc x Chrysler 16pin
1pc x Fiat 3pin
1pc x GM/Daweoo 12pin
1pc x HONDA 3pin
1pc x Mitsubishi/Hyundai -12+16pin
1pc x Kia 20pin
1pc x MAZDA 17pin
1pc x Nissan 14pin
1pc x PSA 3pin
1pc x TOYOTA 17pin
1pc x TOYOTA 23pin

3. Test cable

1pc x Main cable
1pc x Cigaretter Lighter
1pc x Clipper cable

4. Accessories

1pc x AC Adapter
1pc x RS232 serial cable
2pcs x Lighter fuse 6*30mm
1pc x SD Card reader
1pc x CD
1pc x User's manual
1pc x Quick guide
1pc x Package list
