MINI VCI FOR TOYOTA TIS Techstream Firmware V2.0.4 Single Cable Support VPW protocol

MINI VCI FOR TOYOTA TIS Techstream Firmware V2.0.4 Single Cable Support VPW protocol

Reasons To Get Single Cable for MINI VCI

1. Firmware version:V2.0.4
2. Support TOYOTA TIS OEM diagnostic software
3. Support all the diagnostic communication protocols needed for TOYOTA (since 1996).
4. Supported Protocols:K-Line ISO 9141/KWP 2000 ISO 14230-4/SAE J1850 PWM/SAE J1850 VPW/CAN 2.0B ISO 11898 /CAN ISO 15765-4

What's the differece between MINI VCI FOR TOYOTA TIS Techstream and other copy one?

if you would want to reset immo, or make customization to cars, need at least 2.0.1 FW with 2.0.1 FW there is change in PCB, as it support VPW, and has extra security chip on the other hand, all these simple clones with 1.4.1 FW support only CAN and K line VPW protocol is unsupported in 1.4.1 FW, and there is no parts for it on PCB.

Notice

1. This package do not contain Toyota 22pin connector, so it can only do Toyota 16pin cars

2. Support Computer System: Windows XP


Single Cable For MINI VCI Features

• High performance with ARM cpu inside.
• High reliability of products using SMD chip, and certified by CE and FCC.
• Upgrade the firmware via the Internet to improve product.

Mini VCI PCB Board

Hardware Display

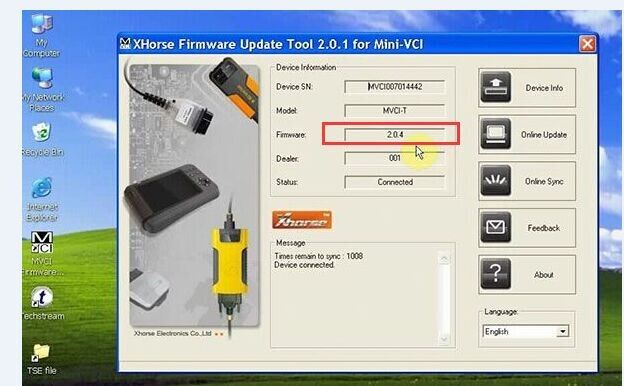

Software Display

Package List:

• 1pc x MINI VCI 16Pin Cable
• 1pc x CD Driver
