JINGJI L3 Vertical Key Cutting Machine With Calibration System

JINGJI L3 Vertical Key Cutting Machine With Calibration System

JINGJI L3 Features:

1.Calibration system indicated by LED light makes precisely cutting
2.Cutter speed regulated to 8500rpm, spring loaded tracer point makes perfect depth alignment
3.Cutting depth locking mechanism, removable jaw makes duplicating more convenient
4.Four- sided revolving clamps with tilting mechanism, just move up and rotate the mechanism untill the most appropritate of the four faces is displayed
5.Cutter and tracer inserted by means of the knob saves time and energy
6.Structured with aluminum alloyed casting technique guarantees absence of vibration during cutting phase



1.Cutter inserting knob
2.Cutter setup/ remove button
3.Armrest support
4.Cali bration light
5.X, Y axis slide handle
6.Cutter insert axis
7.LED light
8.Tracer insert axis
9.Jawtilting activate knob
10.Clamp to secure key blank
11.Jaws ecure/ remove bar
12.X ax is movement locking bar
13.Cutting depth locking handle
14.Tracer grip lockring
15.Tracer depths adjustment knob
16.Power socket A C110 V/2 20V
17.Ca librat ionlight
18.Cutting speed control knob
19.Calibration button
20.Main power switch
21.Clamp to secure original key

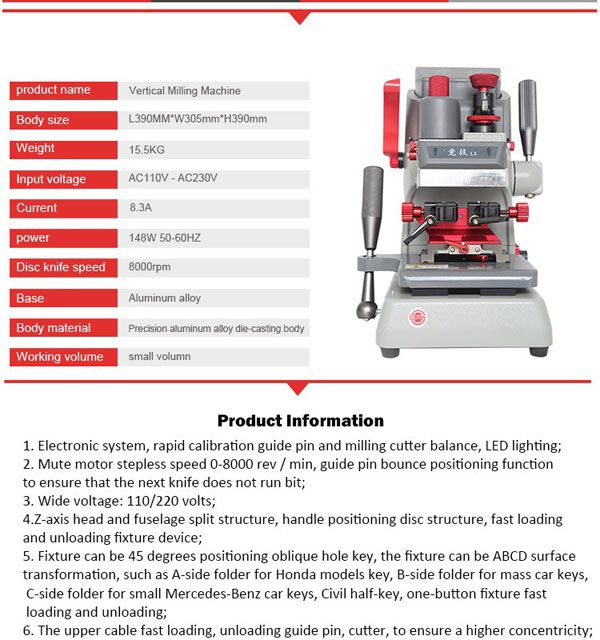

Competitive L3 parameters and functions:

1: input voltage: AC110V-AC230V
Current 8.3A Max 148W 50-60HZ
2: tool leveling indicator
3: spindle motor with adjustable speed: speed 0-8000rpm milling cutter)
4: X.Y-axis motion using linear axis structure (base without shaking)
5: Z shaft moving up and down using the rotation handle disc structure
6: two-sided fixture 45 degrees to the left, move around and change
7: Y advance the shaft can be positioned (to facilitate clamping keys)
8: the mode pin function
9: alloy die-casting machine
10: X shaft, pulling bar, positioning
11: head down and split the body structure
12: the left hand moving base Rails
13: hand-screw spindle clamp fast loading structure
Weight: 390mm*305mm*390mm
Weight: 15.5KG



Machine Accessories List:




Package Includes:

1pc x JINGJI L3 Vertical Key Cutting Machine
