New Genius & Flash Point K-Touch K Touch OBDII/BOOT Protocols Hand-Held ECU Programmer Touch MAP

New Genius & Flash Point K-Touch OBDII/BOOT Protocols ECU Chip Tunning Tool

Top 8 Reasons to Get New Genius K-Touch & Map Programmer:

1. Newest Hardware: 5.005.003, Newly Add More ECU Models, Like VAG DQ500 and VAG DQ250

3. Multi-Language: English,Italian,German,French,Spanish,Portuguese,Hungarian

Cars

Bikes

LCV
5. World’s first Touch & Map device, allows reading / programming the ECU in modern vehicles over OBD2
6. Updated Version of Kess V2, Support More Vehicles
7. No tokens limitation. There is 30 tokens by default, after the tokens use up, you can simply press tokens reset button to reovery.

8.New Genius K-Touch & Map Programmer includes SS77 ECM 1.61 and Winols 2.24 for free

The New Genius is controlled through a system of icons from your TOUCH PANEL touchscreen, this makes it extremely easy to use. A standard 16 pin OBD cable is included and specific connectors to work on making diagnosis and special cables to do so through direct connection to the connector or plate ECU.

Easy to use thanks to its touch screen and intuitive menu.

Completely independent of the PC during the phases of read / write.

System automatic backup.

SD 1 GB expandable memory (expandable to 16 GB)

System updates via USB.

ABS plastic enclosure with ergonomic grip system safe.

LCD display 320 x 240 pixels, CCFL back light with Touch Panel.

Flash memory chip 512K bytes protected.

16 MB RAM memory.

SD card of 1 GB expandable.

LED status SD.

Internal clock with memory.

Lithium 3 volts.

Rechargeable battery 600 mAh 8.4V.

Supply voltage from 12V to 30V.

Communication via K line, L line, CAN-bus 2.0 and J1850.
SS122 XP Operating System CD

As a consequence of the requests received from the market, a specific software has been developed for the independent management of New Genius called DS Manager. This is dedicated to skilled tuners who prefer to develop tuned files with third party editing software. DS Manager can decrypt and encrypt files received from New Genius, so allowing the possibility to export files for the modification. No editing functions are supported. Also for this specific software, a specific tool for the automatic checksum recalculation is provided.

New Genius Master Compared to Best Kess V2 Master:

Product Name	New Genius K-Touch	Best Quality Kess V2 (SE87-D)
Language	English, Italian, German, French, Spanish, Portuguese, Hungarian	English, German, Spanish, Italian, Portuguese, French
Software	--	V2.15
Hardware	V5.05	V4.036
Tokens	No Tokens Limitation,30 Tokens come with device by default, you can press the tokens reset buttonon the back of hardware to get new Tokens	No Tokens Limitation, there is renew buttonon the main unit. This button is used to charge tokens. Once your tokens run over, just click this button, then tokens will go back to 30 tokens.
Update	via hardware	via hardware
Support Protocols	Supports CAN-BUS, KWP and J1850 protocols	Line, CAN, EDC17 and MED17 and Ford J1850
Support Vehicle	Car, Bikes, LCV Support more new vehicle than Kess V2	Car and Bike
PC	Hand-held ECU Chip Tuning Tool, no PC need; software is inside the machine already directly to use	PC-based ECU Programmer, you need install the software by yourself
Method	Read and Write ECU via OBD2 directly	same

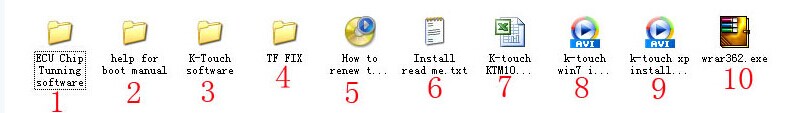

1. ECU Chip tunning software: it is unfriendly and you are supposed to be skilled enough to use it.

2. Boot wiring diagram and instruction.

3. K-touch setup software: the folder "setup3" contains "setup3 manually.zip" and "setup3 xp automatic.exe" , xp user just directly click "setup3 xp automatic.exe" and follow the prompt to operate; win7 user firstly extract file "setup3 manually.zip" and get "raceloc.dll", then manually replace raceloc.dll C:\Users\Your PC Name\AppData\Local\DimWare\RaceEVO\7.0.

4. TF FIX folder contains a video on how to reset the TF program. Note: change other TF card is not allowed, you have to use the built-in TF card.

5. How to renew the token video demo. After renew the machine get 30 tokens.

6. Install read me. Txt: contain simple setup instructions.

7. K-touch vehicle list for reference.

8. K-touch install on win7 procedure. Note: disconnect the network connection when you install and use k-touch, update device and software is not allowed.

9. K-touch install on windows xp procedure. Note: disconnect the network connection when you install and use k-touch, update device and software is not allowed.

10. Decompression software

Feedback:

Tested on:
Simos 18 tested ok. Don't know about simos 12
Tested on many cars Kline an Can and work 100% fine only checksum need to do manually
All simos,denso mitsu ..all ok
Tested on tricore EDC17c10 all ok
EDC17C64 ID & WRITE ok (1.6TDI)
MED17.5.5 ID & READ & WRITE ok
ME7.5 ID & READ & WRITE ok
MED17.5.21 ID & WRITE ok
Sagem 3000 ID & READ & WRITE ok
Opel ME7.6.2 ID & READ & WRITE ok
Mercedes EDC16C2 ID & READ & WRITE ok
Simos 12 & 18 ID & WRITE ok
Checksum recalculated with Genuine Race Evo software for all of my tunes.

2014 Ford Fiesta Ecoboost 1.0 125hp auto
-> Read ok
-> Write ok
2013 Mitsubishi ASX/Outlander Sport 2.0 4B11 CVT
-> Read ok
-> Write ok
2014 Chevrolet Orlando 1.8 Petrol Auto
-> Read ok
-> Write ok
2015 Mitsubishi Montero Sport/Pajero Sport 2.5DiD 178hp auto
-> Read ok
-> Write ok
Can make Opel Zafira , CoMBo , Meriva Denso ECU
Tested psa edc17c10 read on boot and test write by OBD ok
No support Toyota OBD only write med17.5.2. and 17.5.21 (not tested)
