XTOOL KC501 is a professional Key & chip programmer which can read & write keys, read key remote frequency and generate dealer keys. It support read and write MCU/EEPROM chips, read and write Mercedes Infrared keys. Moreover, it support PC connection which brings you better user experience.
XTOOL KC501 Car Key Programmer Work with X100 PAD3 is a one of our xtool pad elite Tools, you can buy XTOOL KC501 Car Key Programmer Work with X100 PAD3 from zobdii.com.
Wholesale Top quality X-PROG Box ECU Programmer, Kess ECU Programmer, SBB Pro2 Key Programmer, Volvo 88890300 Vocom Interface, Cummins INLINE 7 Data Link Adapter
images of XTOOL KC501 Car Key Programmer Work with X100 PAD3
Product Description:
Powerful in functions and fashionable in appearance, XTOOL KC501 is a professional Key & chip programmer which can read & write keys, read key remote frequency and generate dealer keys. It support read and write MCU/EEPROM chips, read and write Mercedes Infrared keys. Moreover, it support PC connection which brings you better user experience.
KC501 is compatible with X100 PAD3 (X100 PAD Elite), for H6ELITE, H6EB, NITRO LT, NITRO XT, NITRO GT, AUTPPAD S, A80, A80 PRO, A80 PRO MASTER, H6 PRO, HU6 PRO MASTER, AUTOPROPAD ELITE will update to work together in 3 months.
KC501 supports read and write keys, support read key remote frequency as well as generate dealers key.

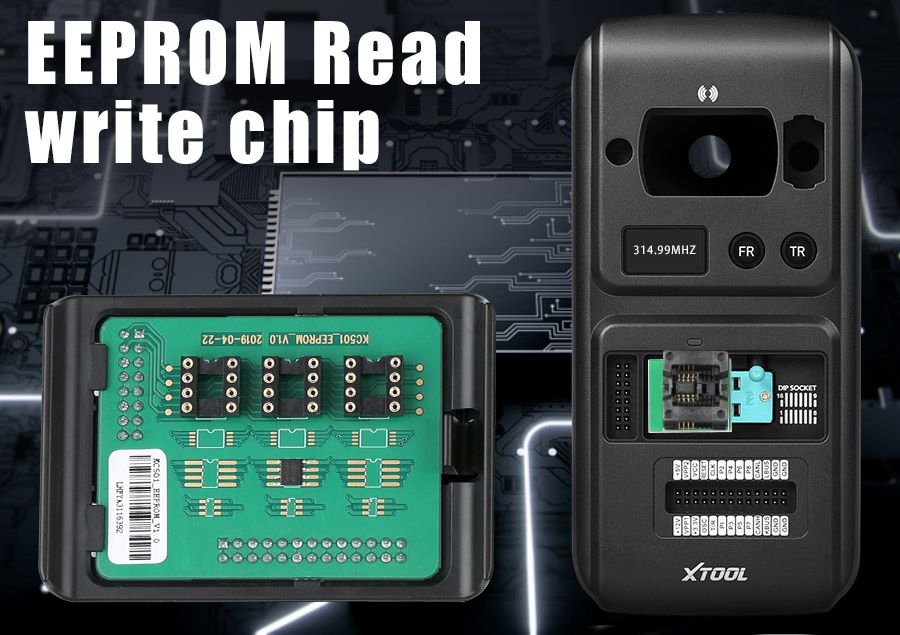

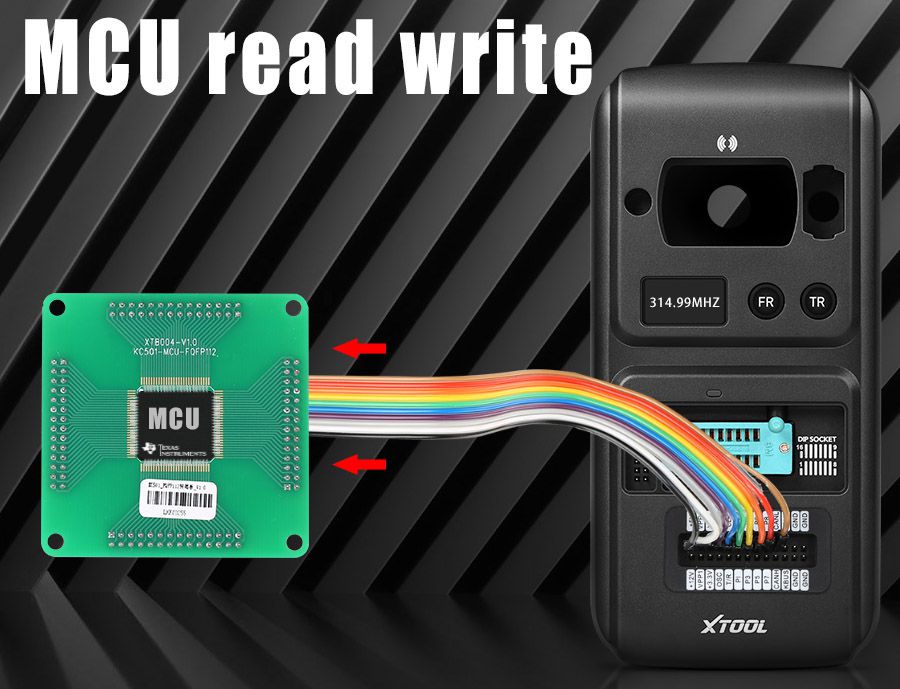

Read and write MCU/EEPROM Chips
KC501 can read and write Mercedes Infrared Keys, is a perfect Key Programmer for Mercedes Car Owner.
Support PC Connection
KC501 supports PC connection or tablet.
XTOOL KC501 vs. KC100 IMMO Adapter:
XTOOL KC501 Product Display:
1. DC Port: It provides 12V DC power supply.
2. USB Port: It provides data communication and 5V DC power supply. (The Type B USB port provides data communication and power supply for our device, PC and KC501.)

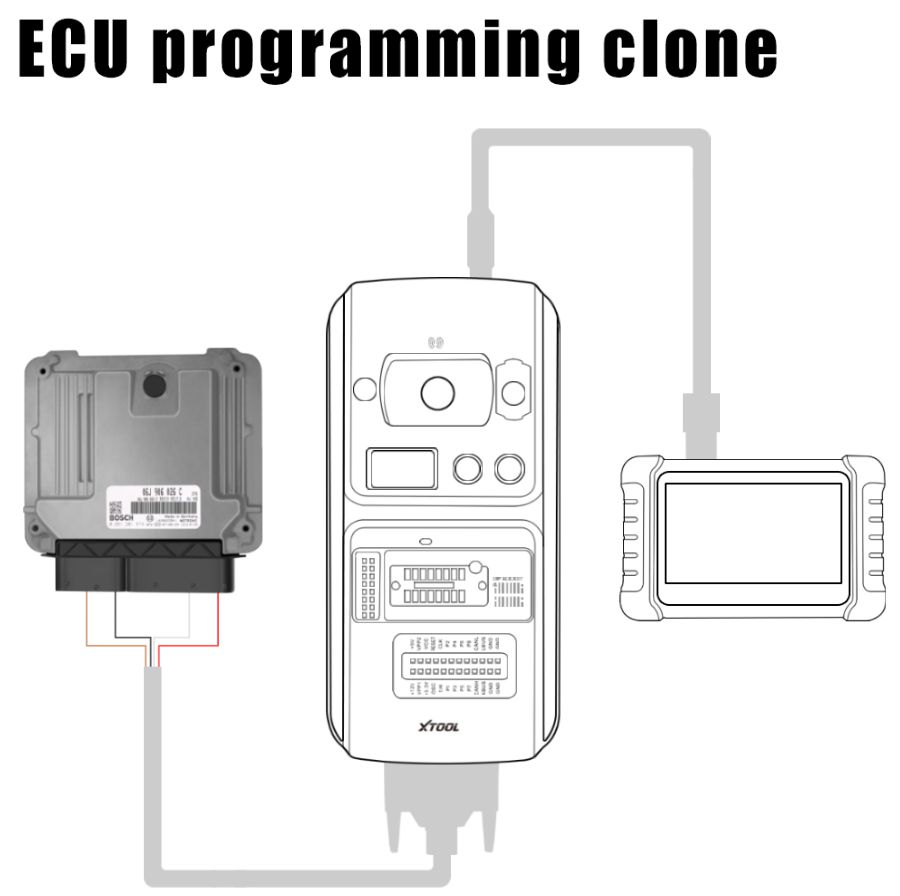

3. DB 26-Pin Port: It connects with the Mercedes Benz infrared cable, ECU cable, MCU cable, MC9S12 cable.
4. Cross Signal Pins: It holds the MCU board, MCU spare cable or DIY signal interface. (The Cross-shaped signal pin is used to place MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.)
5. Locker: It locks the EEPROM component transponder slot to ensure proper functioning. (It is used to place EEPROM chip or socket to read or write EEPROM data.)
6. EEPROM Component Transponder Slot: It holds the EEPROM plug-in transponder or EEPROM socket.
7. Status LED: It indicates the current operating status.
8. IC Card Induction Area (It is used to read and write IC card data.)
9. Display Screen (It is used to show remote frequency or transponder ID.)
10. Remote Frequency Button (Press this button to show remote frequency in the display screen.)
11. Transponder ID Button (Press this button to show transponder ID in the display screen.)
12. Transponder Slot: It holds the transponder. (It is used to hold the transponder to read or write transponder data.)
13. Vehicle Key Slot: It holds the vehicle key. (It is used to hold the vehicle key to read or write vehicle key data.)
14. Remote Control Transponder Induction Area (It is used to read and write remote control transponder data.)
15. Mercedes Infrared Key Slot: It holds the Mercedes infrared key. (It is used to hold Mercedes infrared key to read or write Mercedes vehicle key data.)
XTOOL KC501 Latest Update Information:
Add Infrared Key Function List (July 30th, 2020)
Model Years
A Series 2005-2013
B Series 2005-2014
C/CLK Series 2006-2014
CLA Series 2013-2016
CL Series 2006-2013
CLS Series 2006-2013
E Series 2005-2015
G Series 2015
GL/CLG Series 2006-2014
GLC/GLK Series 2008-2015
M/ML Series 2006-2013
R Series 2006-2017
S Series 2006-2017
SLK/SLC Series 2006-2016
XTOOL KC501 vs. KC100 IMMO Adapter:
| XTOOL KC501 | XTOOL KC100 | |
| Pic |  |  |
| Release Time | 2020 | 2017 |
| Applicable Key Programmer | Xtool X100 PAD3 (X100 Elite), H6, H6 Pro, i80, Auto pro pad | X100 PAD3, X100 PAD2, EZ500, PS80, PS90, A80 etc |
| Generate dealer keys | Yes, when working with Xtool X100 PAD3 | No |
| Read and write Mercedes Infrared keys | Yes | No |
| Detect key ID | Yes | No |
| Detect key frequency | Yes | No |
| Connect to PC (stand-alone) | Yes. Download PC software on official site. | No |
| Volkswagen/Audi/Skoda 4th key programming | Yes | Yes |
| Volkswagen/Audi/Skoda 5th key programming | Yes | Yes |
| MQB key programming | Yes | Yes |
| Volkswagen/Audi/Skoda 4th generation 96-bit online | Yes | Yes |
| Volkswagen/Audi/Skoda 5th IMMO generation online | Yes | Yes |
| MQB online key programming | Yes | Yes |
| BMW CAS1-CAS3++ key programming | Yes | Yes |
| BMW EWS2 EWS3 EWS4 key programming | Yes | Yes |
| Land Rover after 2015 year Smart key write start key | Yes | Yes |
| Fiat Viaggio, 500, Palio and other models IMMO key programming | Yes | Yes |
| Toyota/Lexus all Smart keys lost key programming without dismantling, including 94, 98, 88, A8, A9, 39 simulation key generation. | Yes, work with KS-1 Smart Key Emulator | Yes, work with KS-1 Smart Key Emulator |
XTOOL KC501 Product Display:
1. DC Port: It provides 12V DC power supply.
2. USB Port: It provides data communication and 5V DC power supply. (The Type B USB port provides data communication and power supply for our device, PC and KC501.)
3. DB 26-Pin Port: It connects with the Mercedes Benz infrared cable, ECU cable, MCU cable, MC9S12 cable.
4. Cross Signal Pins: It holds the MCU board, MCU spare cable or DIY signal interface. (The Cross-shaped signal pin is used to place MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.)
5. Locker: It locks the EEPROM component transponder slot to ensure proper functioning. (It is used to place EEPROM chip or socket to read or write EEPROM data.)
6. EEPROM Component Transponder Slot: It holds the EEPROM plug-in transponder or EEPROM socket.
7. Status LED: It indicates the current operating status.
8. IC Card Induction Area (It is used to read and write IC card data.)
9. Display Screen (It is used to show remote frequency or transponder ID.)
10. Remote Frequency Button (Press this button to show remote frequency in the display screen.)
11. Transponder ID Button (Press this button to show transponder ID in the display screen.)
12. Transponder Slot: It holds the transponder. (It is used to hold the transponder to read or write transponder data.)
13. Vehicle Key Slot: It holds the vehicle key. (It is used to hold the vehicle key to read or write vehicle key data.)
14. Remote Control Transponder Induction Area (It is used to read and write remote control transponder data.)
15. Mercedes Infrared Key Slot: It holds the Mercedes infrared key. (It is used to hold Mercedes infrared key to read or write Mercedes vehicle key data.)
XTOOL KC501 Latest Update Information:
Add Infrared Key Function List (July 30th, 2020)
Model Years
A Series 2005-2013
B Series 2005-2014
C/CLK Series 2006-2014
CLA Series 2013-2016
CL Series 2006-2013
CLS Series 2006-2013
E Series 2005-2015
G Series 2015
GL/CLG Series 2006-2014
GLC/GLK Series 2008-2015
M/ML Series 2006-2013
R Series 2006-2017
S Series 2006-2017
SLK/SLC Series 2006-2016
Parameters:
Display Screen: 320x480 dpi TFT Colorful Screen
Working Voltage: 9V-18V
Working Temperature: -10℃-60℃
Storage Temperature: -20-60℃
Power Supply: 12V DC
Package includes:
Package includes:
1pc x Accessories
1pc x Certificate Of Quality
1pc x Packing List
1pc x User Manual
1pc x Carton
1pc x Test Connectors
1pc x MCU FQFP176
1pc x MCU FQFP64
1pc x XTA001 Clamp
1pc x IC Clamp
1pc x MCU FQFP112
1pc x MCU FQFP144
1pc x MCU FQFP80
1pc x IC EEPROM Socket
1pc x EEPROM Adaptor (With bracket)
1pc x XTA002 Clamp
1pc x XTA003 Clamp
1pc x 26 PIN Cable
1pc x 24AWG Cable
1pc x Tool Case
1pc x Main Units
1pc x KC501 Key & Chip Key Programmer
1pc x USB_TYPE-B
1pc x USB_TYPE-C
1pc x Charger (With Power Supply Cable)
