VAG IMMO Emulator for VW Golf III, Passat B4, VW Sharan 98,Lupo 98,Polo 98, T4, VW LT35,Audi 100, A6, A4, A8,VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6 and TT.

VAG IMMO Emulator For VW/Audi is a one of our transponder programmers Tools, you can buy VAG IMMO Emulator For VW/Audi from zobdii.com.

Wholesale Top quality X-PROG Box ECU Programmer, Kess ECU Programmer, SBB Pro2 Key Programmer, Volvo 88890300 Vocom Interface, Cummins INLINE 7 Data Link Adapter

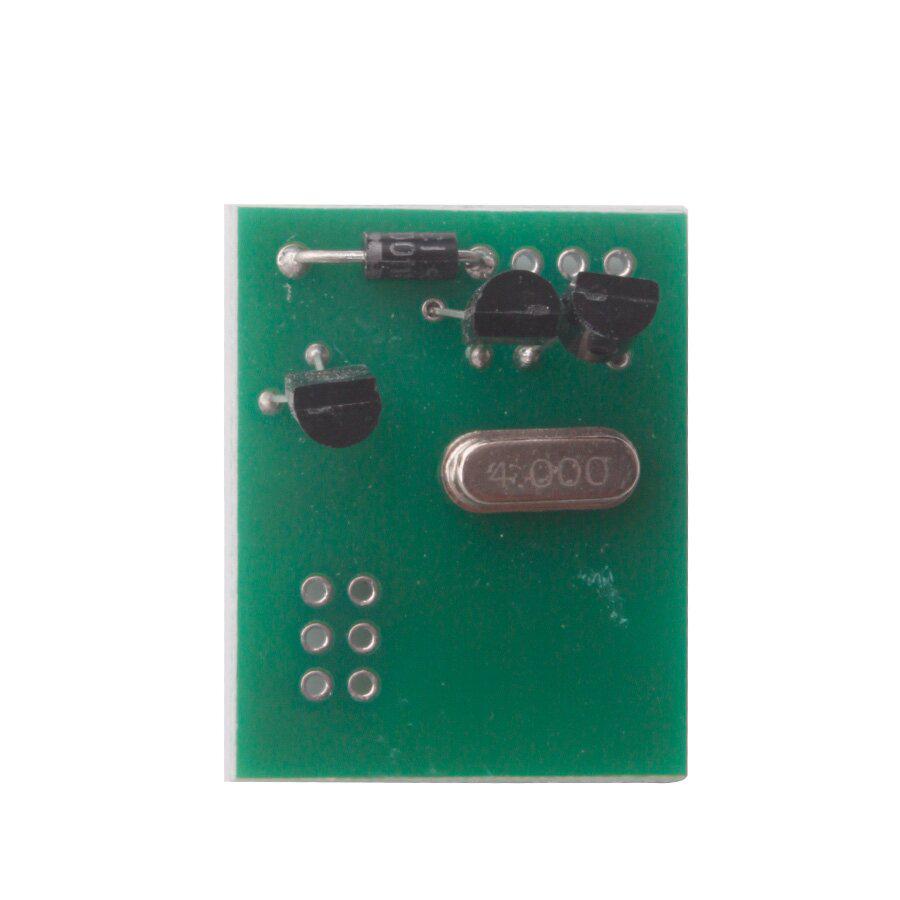

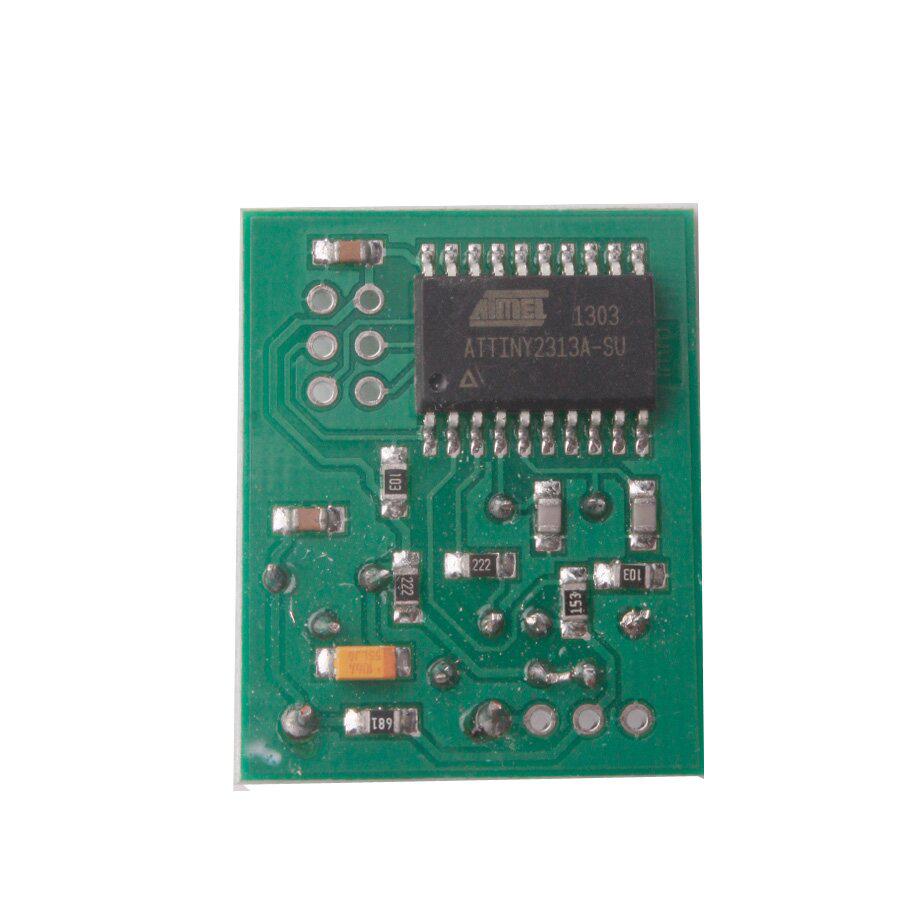

images of VAG IMMO Emulator For VW/Audi

VAG IMMO Emulator For VW/AudiVAG IMMO Emulator For VW/Audi


VAG IMMO Emulator

Connection Diagram:
VAG IMMO Emulator
For cars with separated Immobilizer box, short W and K lines and remove
Immobilizer box.
For cars with dashboard Immobilizer, cut W line from dashboard

VW Golf III, Passat B4
Immobilizer box side



VW Sharan 98, Lupo 98, Polo 98, T4
Immobilizer box side


VW LT 35

Immobilizer box side



Audi 100, A6, A4, A8


VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6, TT



GND --- Dashboard Blue connector pin 24
K --- Dashboard Blue connector pin 25
W --- Dashboard Green connector pin 5
IGN +12V --- Dashboard Blue connector pin 1



Package including:
1pc x VAG IMMO Emulator
